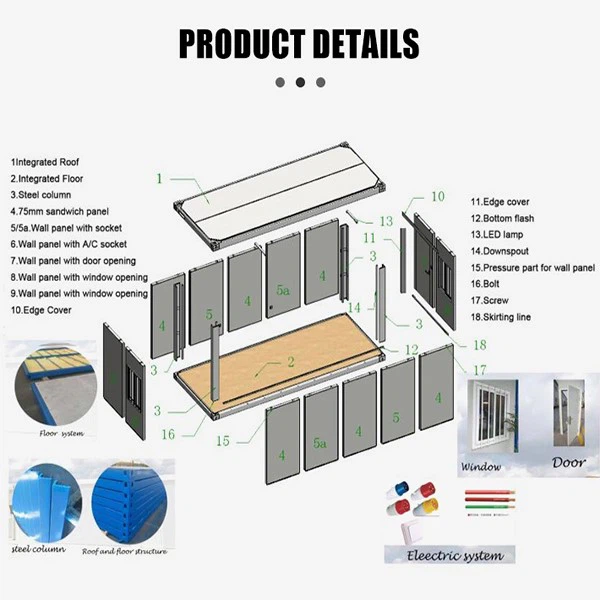

Flatpack is a kind of container house consists by container roof, container base, four columns and sandwich wall panels. We have prefabricated all above parts in our factory, so the container roof will be an integrated one piece with PU foam as insulation, with electrical system embedded and ready for connecting. The door and windows are pre-installed into the wall panel, conduits, cable, sockets and switches are also well pre-installed. Base is also well finished with floor deck and flooring, even plumbing is pre-set into the container base, only need to be connected to the outlets during installation.
We have standard 20ft size design in both empty for office space and with bathroom for living. They can also be combined together to meet with different space requirements, they can also be built in three floors to save land.
CBC flatpack cubic house is made by Q355 galvanized steel frame and long lifetime sandwich wall panels, the overall lifetime of our flatpack container home can reaches to 15~20 years even in some heavy wind or highly corrosive areas.
Flat Pack Container House Products

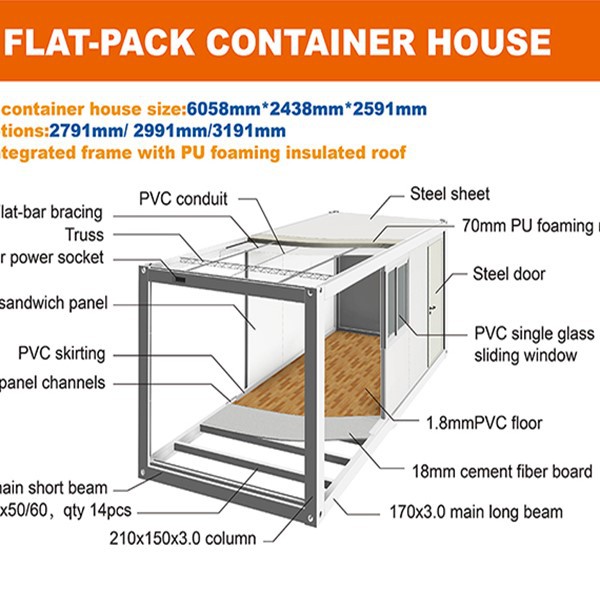

Specifications
|
Size |
Length |
6058mm / 6000mm or customized |
|
Width |
2438mm /3000mm or customized |
|
|
Height |
2600mm / 2791mm / 3000mm or customized |
|
|
Clear height indoor |
5800mm*2200mm*2300mm, or custom-made dimensions for special projects |
|
|
|
Roof System |
Roof structure made by 2.5~3mm thick Q355 galvanized steel, cold rolled special sections, high strength + 70mm thick integrated PU foam insulation + embedded electrical system |
|
Roof loading:>1.0KN/m2, can walk on the roof directly |
||
|
Base System |
Q355 galvanized steel structure chassis (2.5~3mm thickness) + 18mm cement-fiber board + 2mm PVC floor sheet (glass wool insulation for optional) |
|
|
Floor loading:>2.5KN/m2 |
||
|
Wall System |
T=50/75/100mm EPS / rock wool / glass fiber / PU sandwich panel, 0.4mm color-bond steel on both sides |
|
|
Door System |
Steel door / Fire-proof door / Sandwich panel door |
|
|
Window System |
Aluminum alloy or PVC window, single or double glass |
|
|
Floor System |
PVC, plywood or customized |
|
|
Option |
Drainage system |
Full embedded in factory, can be customized |
|
Electric system |
Pre-installed in factory, can be customized |
|
|
Technical Parameter |
Suitable temperature |
-40ºC to 40ºC |
|
Wind resistance |
210km/h |
|
|
Seismic resistance |
Grade 8 |
- Design: we chose PU injection for the roof insulation system, which has much better performance in tightness, strength and insulation. this system is patented in China. what's more, our container home is designed for 1KN/sqm roof live load and 2.5KN/sqm floor load, wind resistance can reach to 210km/H;
- Materials: we use Q355 galvanized steel cold rolled for the main frame, all frames are full welded together then well-polished and painted in our automatically painting platform, which will be much better than by manual. the steel sheets on both side of the sandwich wall panels are with aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um treatments, lifetime can reach to 15~20 years.
- Production: most of the cutting, drilling, welding and painting are by machines or auto-arms, much better in accuracy and more guarantee for the quality;
- Installation: we have SOC packing which will be much easier for materials sort out onsite, less problem for installation and also time saving. we have very detail installation instructions and videos to guide the onsite work, make sure every project can be handled over perfectly.
Applications

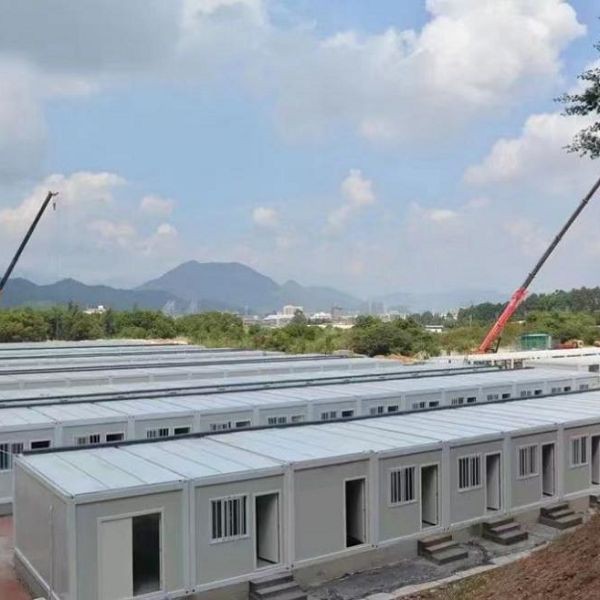

Construction site office or accommodation camp
Fast installation and can be easily relocated after the project finished, very convenient for construction companies and can also save a lot of cost.

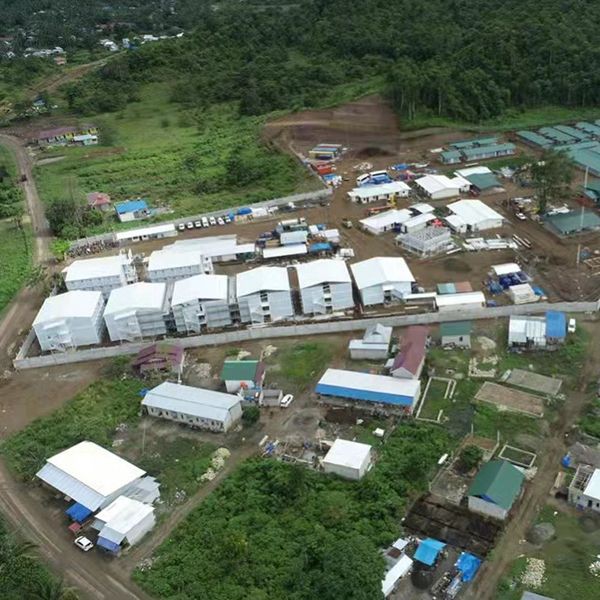

Mining site office or accommodation camp
Easy to handle in the remote mining areas, lifetime can reach to 15~20 years. because other than the galvanized steel frames, the steel sheet for the sandwich wall panel is aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um.
Less concrete foundation requirements to protect the land and save construction cost, Also, can withstand in heavy wind and highly corrosive conditions.
Isolation rooms
massive production capability and fast installation made the flatpack to be the perfect solution during the pandemic. It can be re-located and re-used after wise to recover part of the investment, simple requirements for foundation also can protect the land and save the construction cost.
Temporary office or living house
Ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
Low-cost house
Affordable cost vs. 15~20 years lifetime makes the flatpack to be the most competitive solution for low-cost housing projects. What’s more, it can be built in a short time and massive production is available.
Granny backyard flat
Ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
Kiosk booth;Guard house;Rent for other temporary use.
Advantages
|
Item |
CBC Flatpack Cube |
Pictures |
Evolution |
Other Brand |
Evolution |
|

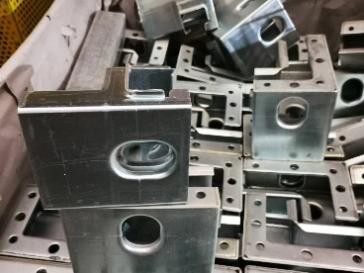

Steel Structure |
G355 galvanized steel beams in thickness 2.5~3mm, high structure strength and durability |
|
★★★★★ |
G235 steel beams with only painting and thinner steel materials used, low structure strength and durability |
★★★ |
|
Electrical System |

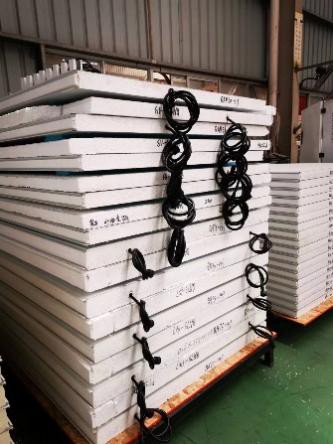

pre-installed in the roof and wall panels, save construction time and cost |
|
★★★★★ |
need to be installed onsite, cause extra onsite labor cost and more problems |
★★★ |
|
Plumbing Pipes |

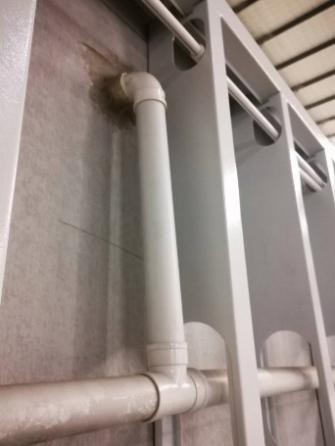

pre-installed in the bottom frame, save onsite labor cost |
|
★★★★★ |
need to drill holes and install on site, cause extra onsite labor cost |
★ |
|

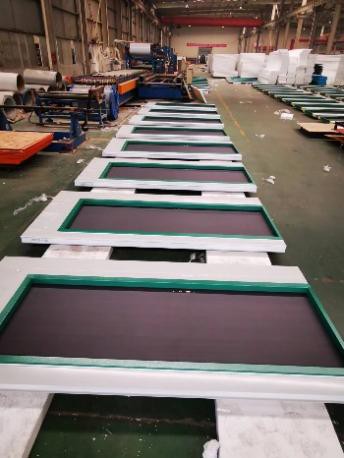

Window & Door |
pre-installed in the wall panels, save onsite labor cost |
|
★★★★★ |
need to be installed onsite, cause extra onsite labor cost |
★★★ |
|
Steel Treatment |
Advanced sand blasting equipment line, improve painting adhesion and durability |
|
★★★★★ |
outsourced processing or no pretreatment, low painting adhesion and durability |
★★★ |
|
Painting |
Advanced automatically painting line to ensure good painting quality |
|
★★★★★ |
outsourced or manually, cannot ensure the painting quality |
★★★ |
|
advanced paint technology, water-based painting available, environment friendly |
★★★★★ |
only oil-based painting, more pollution to the environment |
★★★ |
||
|
Prefabrication |
70-90% as per client’s requirement, save onsite labor cost |
★★★★★ |
around 30% or only loosen parts available, extra site labor cost |
★★ |
|
|
Marking |
two-dimensional code component tracking system can effectively manage each component |
★★★★★ |
No label or very simple label, can’t track every component |
★★ |
|
|
Fast Installation |
4 workers could install 2 units in one day. Offering installation manuals, videos guidance, or send people to support. |
|
★★★★★ |
Need many workers on site to sort out materials and install. no installation manual, videos guidance, couldn’t send people overseas. |
★★ |
|
Packing & Delivery |
special steel racks to protect materials within the shipping container during the long-distance transportation |
★★★★★ |
no packing frame, easy to cause damage, no guarantee what you can get. |
★★★ |
|
|
SOC packing for short-distance transportation, no need to load into shipping container, save the shipping cost |
|
★★★★★ |
only can load into shipping container |
★★★ |
Packing and transportation

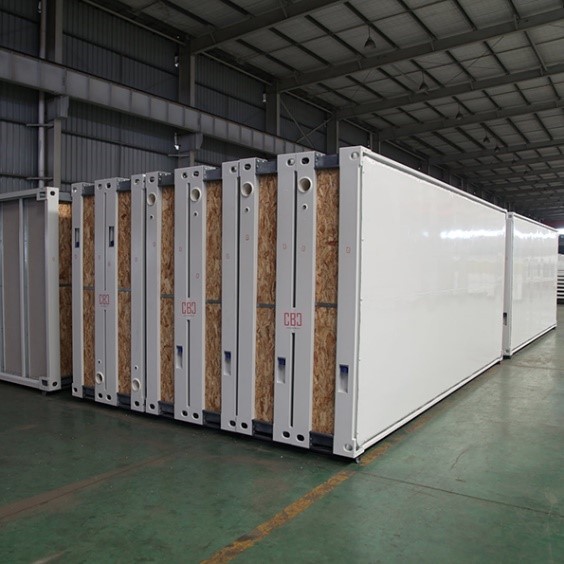

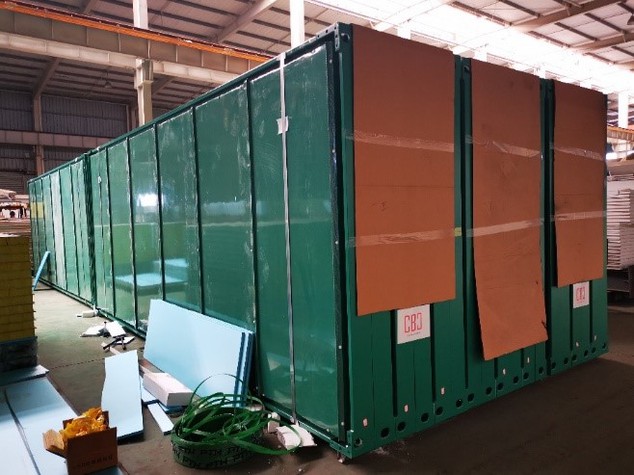

We have two methods for packing: flat packing or SOC packing. We will pack the container roof and base together, and use steel rack to pack and protect the sandwich wall panels and other accessories. Or we will use the container roof and base to make a self-owned-container box, put all sandwich wall panels and other components into the box, so one unit is a box, very easy to sort out the materials onsite and no items will be missed.

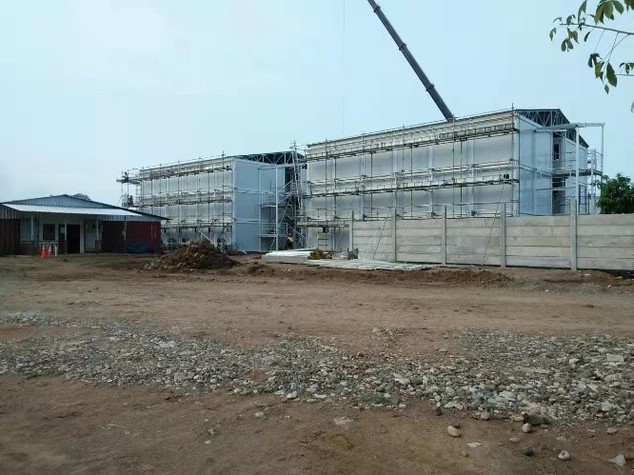

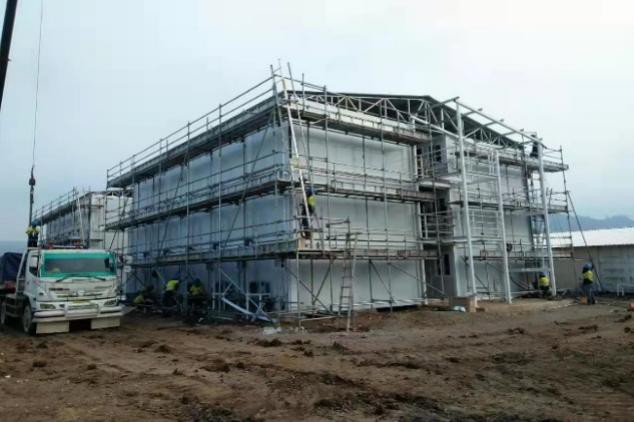

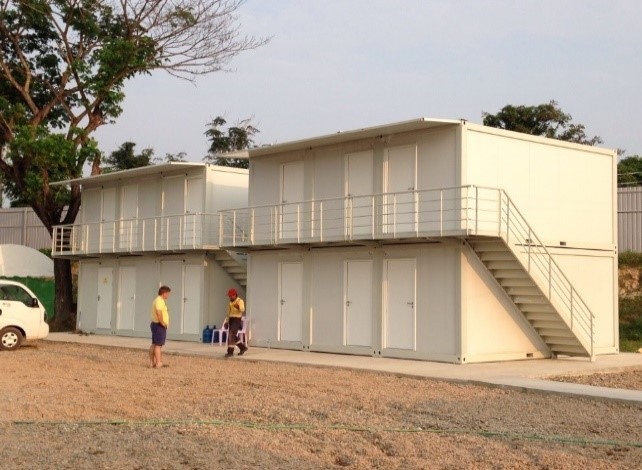

Related Projects
|
|
Project Name |
Camp in Lao |
|
Finished Time |
Year 2019 |
|
|
Project Place |
Lao |
|
|
Building Area |
56 units |
|
|
Project Description |
Accommodation and office blocks made of flat pack container houses, most are two floors. Meets with AU standards. |
|
|
|
Project Name |
MTI Accommodation Camp |
|
Finished Time |
Year 2022 |
|
|
Project Place |
Indonesia |
|
|
Building Area |
288 rooms with ensuite in three floor, 8 buildings |
|
|
Project Description |
8 Staff accommodation buildings for PT. Merdeka Copper Gold. |
|
|
|
Project Name |
AMMAN Accommodation Camp |
|
Finished Time |
Year 2022 |
|
|
Project Place |
Indonesia |
|
|
Building Area |
480 rooms with ensuite |
|
|
Project Description |
6 Staff accommodation buildings for AMMAN. |
FAQ
Q: What is a flat pack container house?
A: Flat pack container house, These tiny houses are mobile, collapsible, and reliable units ideal for both permanent and temporary use. The portable cabins for sale are fast to install, eco-friendly, and easy on the budget. They are found in labor camps, disaster areas, and construction sites.
Q: Is it cheaper to build in a container home?
A: The final cost of flat pack container home isn't always the same and depends on many considerations; however, they are significantly more affordable than conventional builds when comparing similar features and inclusions.
Q: What is the cheapest foundation for a container home?
A: Pier Foundation
They are relatively inexpensive, and quick to construct, a pier foundation is comprised of concrete blocks.
Q: Are flat pack containers waterproof?
A: CBC flat pack containers and cabins are fully galvanized and waterproof so you don't need to worry about corrosion.
Q: Can a flat pack container be used as a house?
A: The most popular container size used for homes is a 40-foot, high-cube container, which offers about 320 square feet of living space with 9.5-foot ceilings. That's enough for one to two bedrooms, one bathroom, and a decent-sized kitchen/living room combo space.
Q: Do you need a concrete slab for a prefab container house?
A: Thus, containers placed directly on the ground tend to sink in the long term (think months to years). However, a container placed on a hard substrate like granite may never need a foundation or a gravel pad, while a container in a bayou may always require concrete pilings.
Q: Are flat pack containers secure?
A: These container houses are typically made from high-quality galvanised steel, providing a strong and secure structure
Q: What is the lifespan of a flat pack container home?
A: 25-30 years
Because they were built to safely transport goods over long distances and often-harsh conditions, prefab containers are extremely durable, making them an ideal choice for homes. With proper care and maintenance, these homes can last decades - an average lifespan of 25-30 years.
Q: Are container homes noisy?
A: Container homes can be quite. This is because they are made out of steel plus sandwich panel insulation, which reduced sound better than many other common building materials.
