Detachable is a cost-saving version of flatpack. We change the roof insulation to glass wool or rockwool, make them into small pieces and can be easily assembled onsite, we send all steel members well prefabricated with connectors ready to be bolt together, also provide very detailed assemble instructions.
Our detachable container house can save prefabrication cost, bulk packing also can save freight. Detachable can also achieve more flexible space design: we can make the detachable in 3m width and in 9~12m length.
Because less prefabrication in our factory, we can provide large quantity of detachable at a very short time for some special projects.
Detachable Container House Products
Specifications
|
Item |
Specifications |
||
|
External Dimensions(L*W"H) |
L6000*W3000*H2700mm; L12000*W3000*H2700mm; or customized dimensions for special projects |
||
|

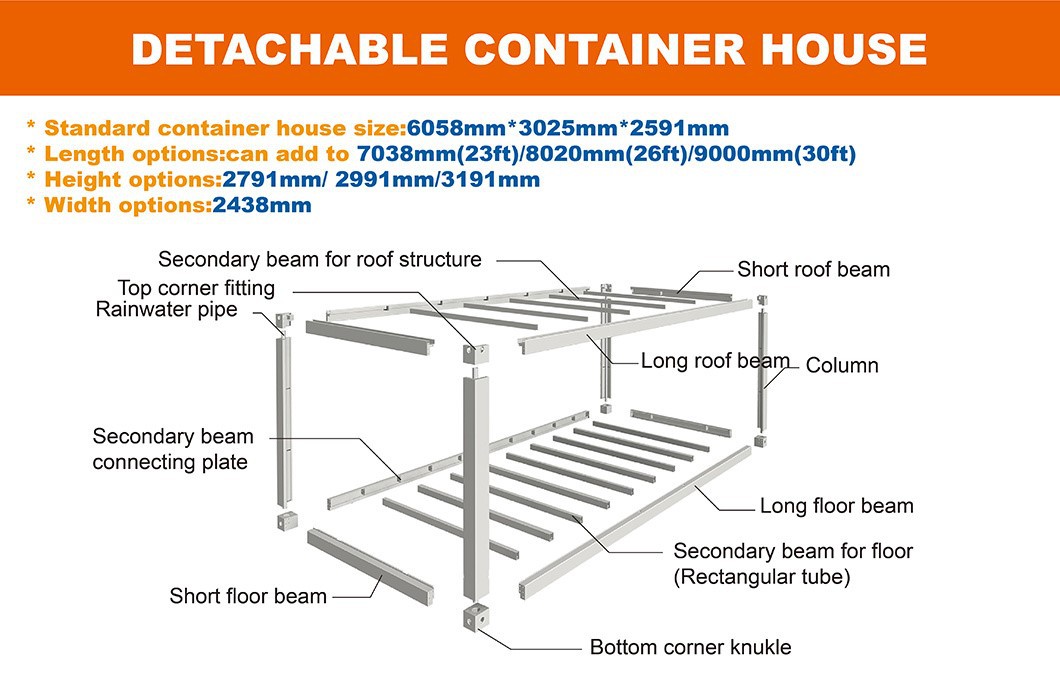

Main frame |
2.2~3mm thick Q355 low alloy carbon galvanized cold rolled profiled steel, to be assembled onsite |
||
|
Wall panel |
Sandwich panel with 0.4mm color bond steel on both sides, Core material options: EPS/Glass wool/ Rock wool/PU Thickness options: 50/75/100mm |
||
|

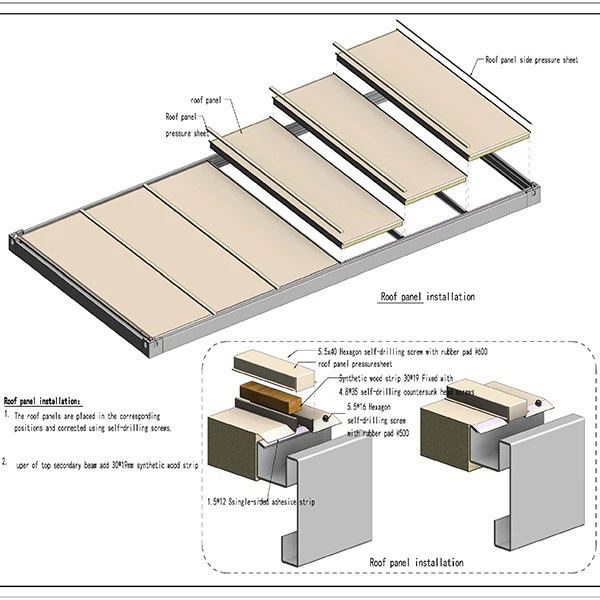

Roof panel |
Sandwich panel with 0.4mm color bond steel on both sides, Core material options: Glass wool/ Rock wool Thickness: 70~100mm |
||
|
Floor |
Cement fiber board / MGO board + PVC |
||
|
Window |
Sliding window with alu. Or PVC frame: 980*1150mm Option: fly screen, security steel bar, rolling blind |
||
|
Door |
Security door/Sandwich panel door/alu. Frame glass door: 960*2080mm |
||
|
Loading |
6 sets in a 20GP, 12 sets in a 40HQ |
||
|
Color |
Red, white, black, blue or customized |
||
|
Corner post |
T=4.5mm cold rolled steel profile, galvanized, full welded, dimension is 160mm*160mm |
||
|
Electricity |
Light, Switch, Socket, distribution box, breaker and wire |
||
|
Painting |
Baking paint spray molding on well-polished galvanized steel |
||
|
Technical parameter |
Resistant temperature |
-40ºC to 40ºC |
|
|
Wind resistance |
210km/h |
||
|
Earthquake resistance |
Grade 8 |
||

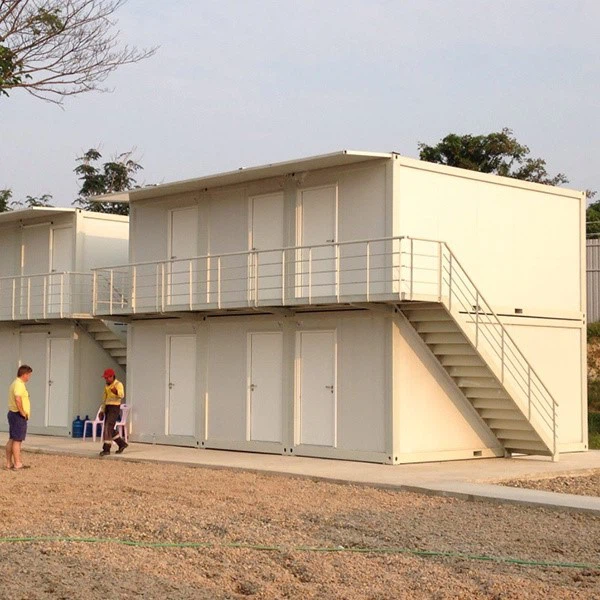

Applications
Construction site office or accommodation camp
A lower cost solution other than flatpack, the benefits are almost the same: fast installation and can be easily relocated after the project finished, very convenient for construction companies and can also save a lot of cost.
What’s more, due to the frames are detachable, we can make larger units (compare to flatpack) to satisfy some special space design requirements such as: we can make it in 3m width and in 9~12m length, this can max. the flexibility of the space design, can also save lots of construction time and costs by build in larger units.
Mining site office or accommodation camp
A lower cost solution other than flatpack, the benefits are almost the same: easy to handle in the remote mining areas (even easier than flatpack, can handle all manually), lifetime can reach to 10~15 years, because other than the galvanized steel frames, the steel sheet for the sandwich wall panel is aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um.
Less concrete foundation requirements to protect the land and save construction cost, Also, can withstand in heavy wind and highly corrosive conditions.
Comparing with the flatpack, the flexibility of the dimension designs make the detachable more suitable for large space office building project or any other projects with special space requirements.
Isolation rooms
A lower cost solution other than flatpack, the benefits are almost the same: massive production capability and fast installation made the detachable to be the perfect solution during the pandemic. It can be re-located and re-used after wise to recover part of the investment, simple requirements for foundation also can protect the land and save the construction cost.
What’s more, if it’s a temporary hospital project, the detachable can meet with the diversified space requirements perfectly.
Temporary office or living house
A lower cost solution other than flatpack, the benefits are almost the same: ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
Diverse dimensions can also bring you more comfortable living and working space.
Low-cost house
A lower cost solution other than flatpack, the benefits are almost the same: affordable cost vs. 10~15 years lifetime makes the detachable to be the most competitive solution for low-cost housing projects. What’s more, it can be built in a short time and massive production is available.
Diverse dimensions can also bring you more comfortable living and working space.
Granny backyard flat
Ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
Diverse dimensions can also bring you more comfortable living and working space.
Kiosk booth;Guard house;Rent for other temporary use.
Advantages
|
Item |
CBC Flatpack Cube |
Pictures |
Evolution |
Other Brand |
Evolution |
|
Steel Structure |
G355 galvanized steel beams in thickness 2.3~3mm, high structure strength and durability |
|
★★★★★ |
G235 steel beams with only painting and thinner steel materials used, low structure strength and durability |
★★★ |
|
Electrical System |
pre-installed in the roof and wall panels, save construction time and cost |
|
★★★★★ |
need to be installed onsite, cause extra onsite labor cost and more problems |
★★★ |
|
Window & Door |
pre-installed in the wall panels, save onsite labor cost |
|
★★★★★ |
need to be installed onsite, cause extra onsite labor cost |
★★★ |
|
Steel Treatment |
Advanced sand blasting equipment line, improve painting adhesion and durability |
|
★★★★★ |
outsourced processing or no pretreatment, low painting adhesion and durability |
★★★ |
|
Painting |
Advanced automatically painting line to ensure good painting quality |
|
★★★★★ |
outsourced or manually, cannot ensure the painting quality |
★★★ |
|
advanced paint technology, water-based painting available, environment friendly |
★★★★★ |
only oil-based painting, more pollution to the environment |
★★★ |
||
|
Prefabrication |
30-70% as per client’s requirement, save onsite labor cost |
★★★★★ |
around 30% or only loosen parts available, extra site labor cost |
★★ |
|
|
Marking |
two-dimensional code component tracking system can effectively manage each component |
★★★★★ |
No label or very simple label, can’t track every component |
★★ |
|
|
Fast Installation |
4 workers could install 1 units in one day. Offering installation manuals, videos guidance, or send people to support. |
★★★★★ |
Need many workers on site to sort out materials and install. no installation manual, videos guidance, couldn’t send people overseas. |
★★ |
|
|
Packing & Delivery |
special steel racks to protect materials within the shipping container during the long-distance transportation |
|
★★★★★ |
no packing frame, easy to cause damage, no guarantee what you can get. |
★★★ |

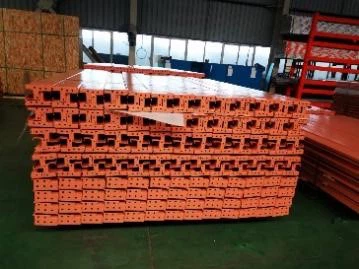

Packing and transportation
We use steel rack to pack all components including the steel frames, corner parts, wall panels and other accessories.
All materials are well organized to avoid any missing or damage, you can sort out the materials onsite easily which will save you a lot of time and cost
Flat packing
Related Projects
|
|
Project Name |
Detachable container office |
|
Finished Time |
Year 2019 |
|
|
Project Place |
Zhejiang, China |
|
|
Building Area |
100 units |
|
|
Project Description |
Accommodation and office blocks made of detachable container houses, 5 blocks in two floors, each units in 3*6m. |
|
|
|
Project Name |
Isolation room in Shangyu |
|
Finished Time |
Year 2022 |
|
|
Project Place |
Shangyu, Zhejiang |
|
|
Building Area |
1200 rooms with ensuite in two floors, total 48 buildings |
|
|
Project Description |
Large isolation room project in Shangyu during the pandemic in Year 2022, massive production and quick install for large project in a month’s time. |
|
|
|
Project Name |
Hill top Resort |
|
Finished Time |
Year 2022 |
|
|
Project Place |
Malaysia |
|
|
Building Area |
Three buildings total 378sqm |
|
|
Project Description |
7 units of 3*6m detachable container house combined for one block in remote area. |
FAQ
Q: What is a detachable container house?
A: Detachable container house means a watertight, all-metal container with sandwich panel insulation, not less than one-half ( 1/2) cubic yard in capacity and equipped with a tight-fitting metal or other City-approved cover.
CBC detachable container house will be packed all KD and assembled onsite by bolts, have included all necessary parts including internal decorations.
Q: How do you extend the life of a detachable container home?
A: 6 Essential Tips to Improve the Lifespan of Container Homes
1. Take Care In the Installation of the Roof.
2. Use Rust Prevention Paints.
3. Add an Exterior Siding.
4. Make the Foundation Strong.
5. Seal Modifications, If Any.
6. Clean Your Container Home Regularly.
Q: Why use a detachable container home?
A: Easy to Maintain: Containers are easy to maintain, which means they can remain in good condition for a long time with relatively little effort. The sandwich panel walls and roof of the container are easy to clean and maintain, and they can be repainted or repaired if necessary.
Q: What is the cheapest way to insulate a detachable container home?
A: Use EPS insulation for low-cost and easy installation. Choose PU foam insulation for its heat-reflective properties and affordability. Opt for recycled materials to be both eco-friendly and cost-effective
