Custom Detachable Container Student Dormitory For African Markets

Custom Detachable Container Student Dormitory for African Markets (CBC System)

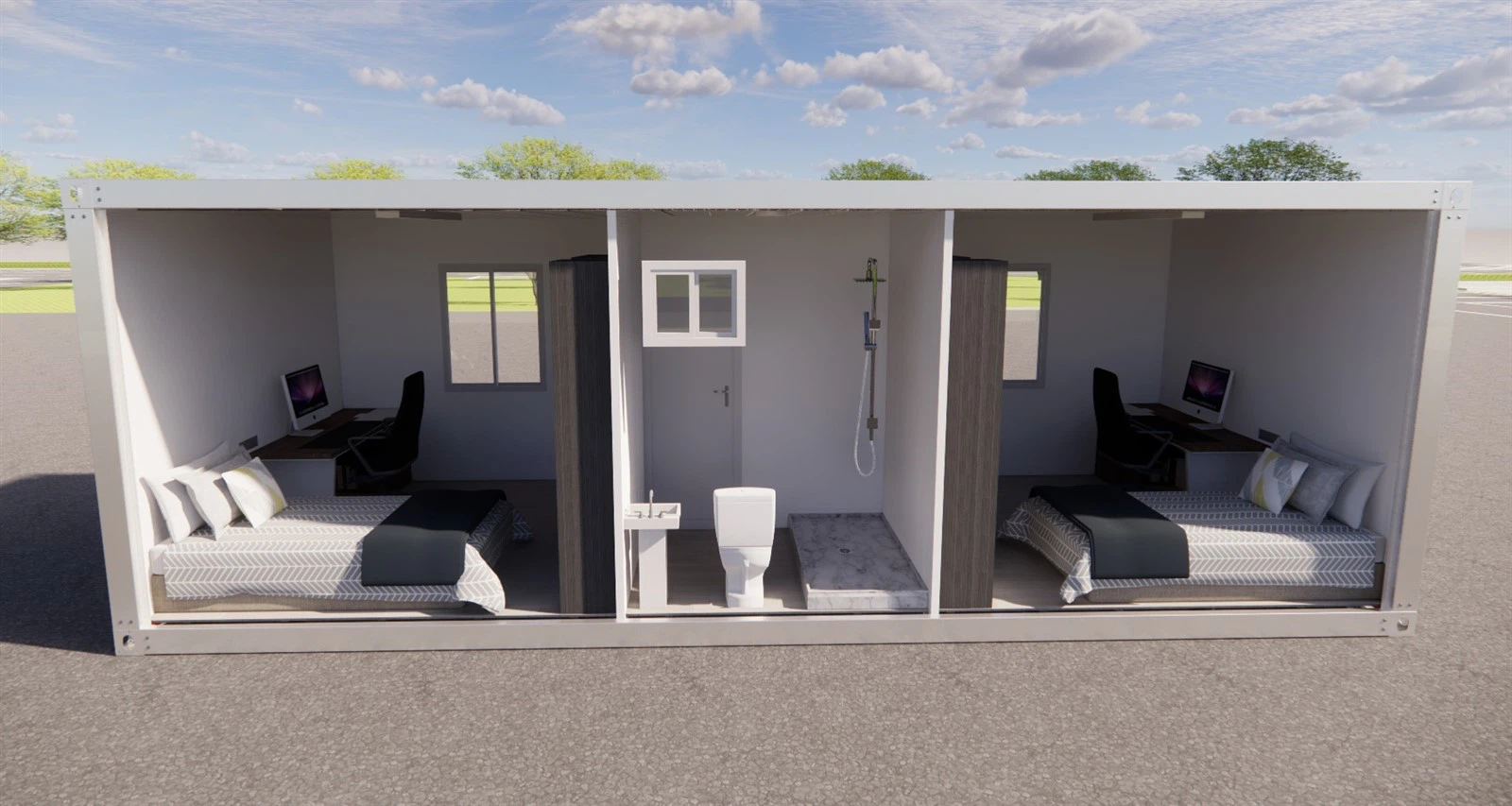

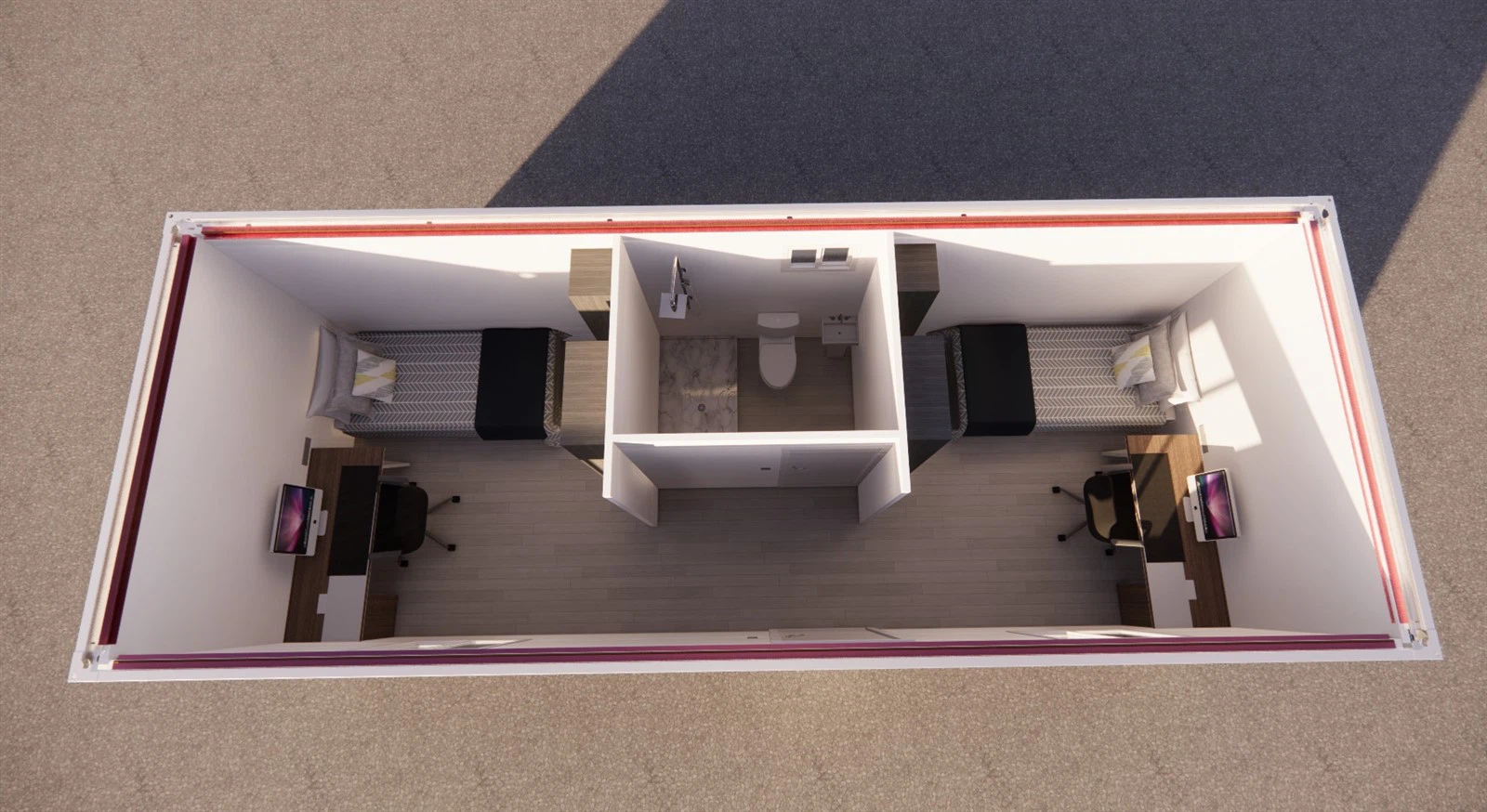

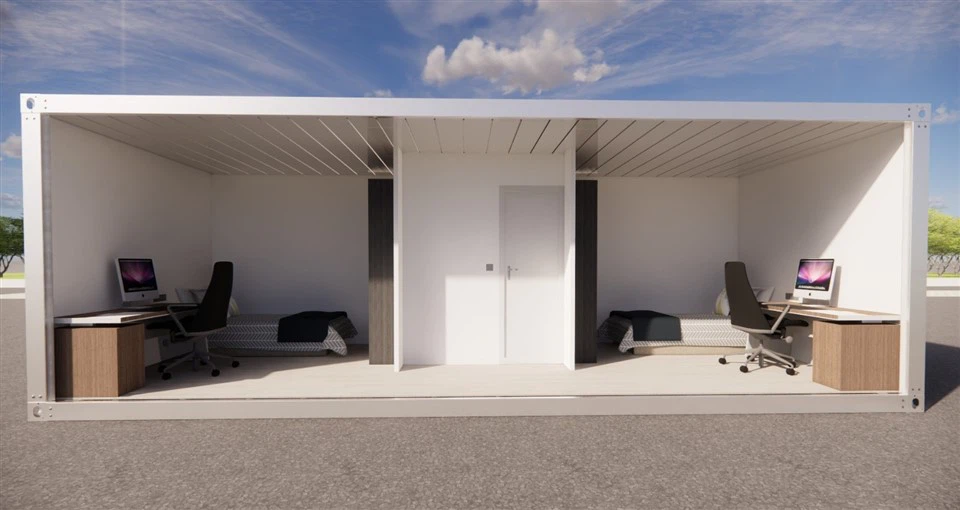

This custom student dormitory is specifically designed for African countries, adhering to the actual needs of student accommodation and the regional climate characteristics of Africa. The customized dormitory covers a total area of 24 square meters, consisting of two independent rooms (each 3m×3m) with a shared bathroom in the middle, which can comfortably accommodate multiple students while ensuring privacy and convenience. Adopting the CBC customized detachable container house system, the product features the core advantages of easy disassembly, convenient transportation, quick installation and reusability, perfectly solving the pain points of high transportation costs, long construction cycles and difficult relocation of traditional student dormitories in African regions. To enhance structural stability and service life in complex African environments, the main beams of the dormitory are thickened to 3mm, and high-quality insulation materials are adopted to adapt to the hot and dry or hot and humid climate conditions in most African countries, providing a comfortable and safe living environment for students.





The dormitory is constructed based on the CBC detachable container house system, with a modular steel frame structure that emphasizes stability, durability and detachability. The overall structure is divided into three key parts: roof frame, floor frame and wall structure, all of which adopt bolted connection design to realize rapid disassembly and assembly without on-site welding, greatly improving construction efficiency and reducing construction difficulty.

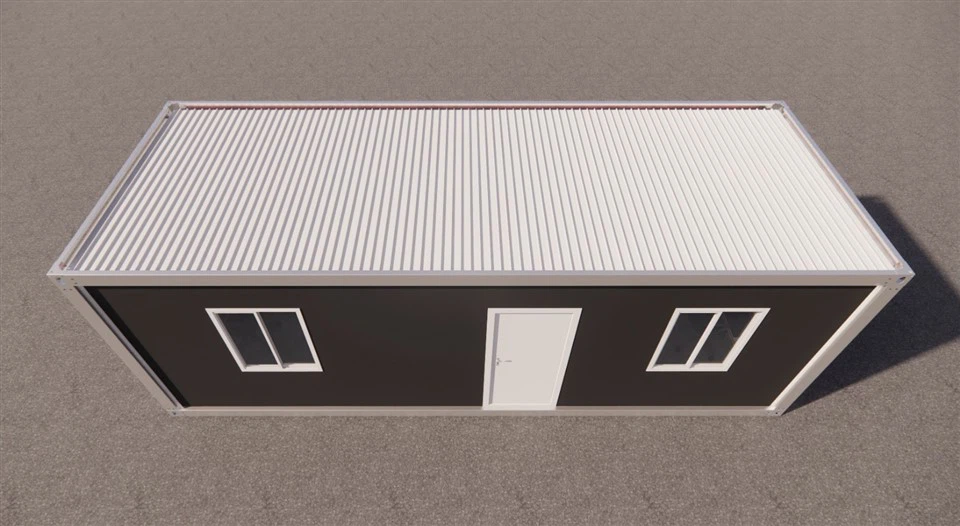

The roof frame is assembled by high-quality galvanized steel pipes, which are corrosion-resistant and rust-proof, adapting to the harsh outdoor environment in Africa. The specific composition includes 2 long beams of 7.68 meters in length, 1 short beam of 2.68 meters in length, 3 galvanized square pipes of 2.78 meters in length (section 50×50mm, thickness 1.5mm), 4 galvanized square pipes of 1.91 meters in length (section 40×80mm, thickness 1.1mm) and 8 galvanized square pipes of 1.91 meters in length (section 40×60mm, thickness 1.1mm). The reasonable combination of long beams, short beams and square pipes forms a stable grid structure, which effectively bears the weight of the roof, resists wind and rain, and cooperates with the 50mm glass wool insulation layer laid on the roof to achieve excellent thermal insulation effect, reducing indoor temperature rise caused by strong sunlight in Africa and improving living comfort.





The floor frame adopts the same main beam specification as the roof (thickened to 3mm), ensuring the overall structural consistency and load-bearing capacity. It is composed of 2 long beams of 7.68 meters in length, 1 short beam of 2.68 meters in length, 13 galvanized square pipes of 2.99 meters in length (section 50×100mm, thickness 1.1mm) and 2 galvanized square pipes of 2.78 meters in length (section 20×40mm, thickness 1.0mm). The dense arrangement of galvanized square pipes enhances the load-bearing capacity of the floor, which can stably bear the weight of students, beds and daily necessities, and the galvanized surface treatment effectively prevents corrosion caused by moisture and humidity, extending the service life of the floor structure. The detachable design of the floor frame also facilitates transportation and on-site assembly.





The walls are made of 50mm EPS sandwich panels with a bulk density of 12, which integrate thermal insulation, sound insulation and fire resistance, and have the advantages of light weight, high strength and quick installation. The EPS core material with reasonable bulk density ensures good thermal insulation performance, which can isolate the outdoor high temperature and maintain a comfortable indoor temperature; at the same time, it has certain sound insulation effect, reducing the mutual interference between the two rooms. The shared bathroom in the middle is designed with waterproof and moisture-proof treatment, which is adapted to the daily use needs of students and avoids structural damage caused by moisture. The entire structure adopts the CBC detachable system, and all components are prefabricated in the factory, with high precision and easy assembly. It can be assembled on site with simple tools, and can be disassembled and relocated according to actual needs, which is highly flexible and practical. In addition, the thickened 3mm main beam enhances the overall stability of the structure, making it able to resist the common strong wind and other harsh weather in African regions, ensuring the safety of students' living.



All materials of the dormitory are selected in strict accordance with the standards of the CBC detachable container house system, focusing on durability, corrosion resistance and adaptability to African climate, and the specific material statistics are as follows:

Material Category	Specification	Quantity	Purpose
Main Beam (Thickened)	Thickness 3mm (matching the overall frame size)	4 pieces (posts to connect roof and base)	Bear the main load
Roof/Floor Long Beam	Length 7.68m, matching the thickened main beam specification	4 pieces(2 for roof, 2 for floor)	Main load-bearing structure of the roof frame
Roof/Floor Short Beam	Length 2.68m, matching the frame specification	4 pieces (2 for roof, 2 for floor)	Connect the main beams, form the basic frame of roof and floor
Galvanized Square Pipe (Roof)	Length 2.78m, section 50×50mm, thickness 1.5mm	3 pieces	Auxiliary support of the roof frame, enhance roof stability
Galvanized Square Pipe (Roof)	Length 1.91m, section 40×80mm, thickness 1.1mm	4 pieces	Auxiliary support of the roof frame, distribute roof load
Galvanized Square Pipe (Roof)	Length 1.91m, section 40×60mm, thickness 1.1mm	8 pieces	Auxiliary support of the roof frame, strengthen grid structure
Galvanized Square Pipe (Floor)	Length 2.99m, section 50×100mm, thickness 1.1mm	13 pieces	Auxiliary support of the floor frame, enhance floor load-bearing capacity
Galvanized Square Pipe (Floor)	Length 2.78m, section 20×40mm, thickness 1.0mm	2 pieces	Auxiliary support of the floor frame, fill the frame gap
Wall Panel	50mm EPS sandwich panel, bulk density 12	Custom quantity (matching 3m×8m×2 rooms + shared bathroom)	Form the wall of the dormitory and shared bathroom, provide thermal insulation and sound insulation
Roof Insulation Material	50mm glass wool	1 set (matching the roof area)	Roof thermal insulation, reduce indoor temperature rise
Fasteners	Bolted connectors (matching the CBC detachable system)	Custom quantity	Connect all components, ensure the stability of the detachable structure

Note: All galvanized square pipes adopt hot-dip galvanizing + on-line passivation technology, with zinc layer thickness ≥60μm, which can pass 720 hours of neutral salt spray test, ensuring excellent corrosion resistance in African environment. The EPS sandwich panels and glass wool all meet international standards such as ISO, ASTM and CE, with reliable quality and stable performance.





African countries are in the stage of rapid development of education, and the number of students in primary and secondary schools and universities is increasing year by year, resulting in a serious shortage of student accommodation facilities. Traditional student dormitories in Africa have problems such as high construction costs, long construction cycles, poor thermal insulation performance, and difficulty in relocation, which cannot meet the growing accommodation needs. The custom detachable container student dormitory based on the CBC system just solves these pain points: it has the advantages of low cost, quick installation, easy relocation, and good thermal insulation, which is highly suitable for the economic level and climate characteristics of African countries. At the same time, many African countries have insufficient infrastructure construction, and the detachable feature of the product allows it to be flexibly deployed in rural and remote areas, further expanding the market demand. In addition, the shared bathroom design meets the basic living needs of students, and the modular structure can be adjusted according to the number of students, with strong adaptability.





Compared with traditional student dormitories and ordinary container houses in the African market, this product has obvious competitive advantages:

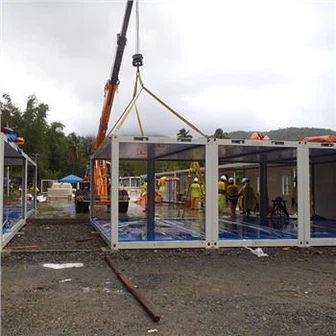

CBC Detachable System Advantage: Adopting the CBC customized detachable container house system, it can be completely disassembled and reassembled, with ultra-high transportation efficiency-up to 17 similar modules can be loaded in a 40-foot container, greatly reducing transportation costs, which is crucial for African countries with underdeveloped transportation infrastructure. The bolt-only assembly system requires no welding, and can be completed with basic hand tools in a short time, reducing construction difficulty and labor costs.

Structural Stability Advantage: The main beam is thickened to 3mm, and the roof and floor frames are composed of high-quality galvanized steel pipes, which have strong load-bearing capacity and wind resistance, adapting to the harsh weather conditions such as strong winds in African regions. The galvanized surface treatment effectively prevents corrosion, extending the service life of the product to more than 15 years, which is longer than that of ordinary container houses.

Climate Adaptation Advantage: The 50mm EPS sandwich panels (bulk density 12) and 50mm glass wool insulation layer have excellent thermal insulation performance, with a thermal conductivity coefficient of about 0.032-0.033 W/(m·K), which can effectively isolate the outdoor high temperature and maintain a comfortable indoor temperature, solving the problem of poor thermal insulation of traditional dormitories in African hot climate. The materials also have certain moisture-proof and anti-mildew properties, adapting to the hot and humid climate in some African regions.

Cost-Effective Advantage: The prefabricated production mode in the factory reduces on-site construction costs and construction cycles; the detachable and reusable characteristics reduce the cost of secondary construction; the selection of cost-effective materials on the premise of ensuring quality makes the product have a obvious price advantage compared with traditional dormitories, which is in line with the economic bearing capacity of African countries.





With the continuous investment of African countries in education and the continuous growth of student accommodation demand, the market prospect of detachable container student dormitories is broad. On the one hand, governments of African countries are paying more and more attention to the improvement of education infrastructure, and the demand for low-cost, high-efficiency and easy-to-deploy student dormitories is increasing, which provides a huge policy and market space for this product. On the other hand, the CBC detachable container house system has been widely recognized in the global modular construction market for its reliability and flexibility, and its application in student dormitories will further expand the market share in Africa. In addition, the product can not only be used as student dormitories, but also can be transformed into temporary classrooms, staff dormitories and other facilities, with a wide range of applications, further enhancing the market competitiveness. It is expected that with the promotion of the product in African countries, it will quickly occupy a certain market share and become a mainstream solution for student accommodation in African countries in the future.
