CBC Steel Structure Parking Garage Design Proposal For Manila City Center

CBC Steel Structure Parking Garage Design Proposal for Manila City Center



This project aims to construct a 4-story steel structure parking garage (including the ground floor) in the center of Manila, Philippines, with a maximum capacity of 120 parking spaces. Adhering to the Philippine National Building Code (PD 1096) and the National Structural Code of the Philippines (NSCP 2015), the design fully leverages CBC Steel Buildings' pre-engineered steel structure system solutions. CBC is a leader in custom-engineered steel building solutions, offering unparalleled flexibility, durability, and cost-effectiveness-key advantages that address the unique requirements of urban parking construction in Manila. The structure will integrate optimized space planning, compliant ramps and circulation paths, and CBC's high-performance steel components to ensure safety, efficiency, and long-term operational value.







The parking garage covers a total area of approximately 1,880 square meters, with each floor spanning 470 square meters. To maximize space utilization while complying with Philippine parking space standards, the design adopts perpendicular parking arrangements-each standard parking space measures 2.5m × 5m, and accessible parking spaces (4 in total, accounting for 3.3% of total spaces) are sized 3.7m × 5.0m as required. The 4-story structure is distributed as follows: Ground Floor (30 spaces), 1st Floor (30 spaces), 2nd Floor (30 spaces), and 3rd Floor (30 spaces), totaling 120 spaces.

CBC's pre-engineered steel system enables wide clear spans without obtrusive columns, which is critical for optimizing parking layout and circulation. The column grid is designed as 8m × 8m, balancing structural stability and space flexibility. This layout eliminates column interference in parking aisles, allowing for a 5.5m-wide main circulation aisle (meeting NSCP minimum requirements) and ensuring smooth vehicle movement.





Two-way ramps are installed on the eastern side of the structure to connect all floors, adhering to Philippine traffic and building code specifications. The ramp gradient is set at 1:12 (8.33%), with a width of 5.0m to accommodate simultaneous two-way traffic. The ramp surface is paved with anti-slip steel plates integrated with CBC's structural flooring system, enhancing safety in Manila's humid climate.

Circulation paths are designed to minimize congestion: each floor features a looped aisle connecting parking spaces to the ramps, with clear signage and lighting integration. CBC's steel framing system allows for seamless integration of mechanical, electrical, and plumbing (MEP) systems, including recessed lighting and ventilation ducts, without compromising floor space or structural integrity.

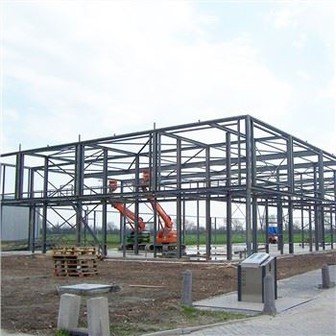

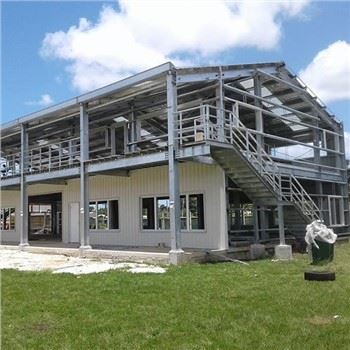

The primary structure adopts CBC's pre-engineered H-steel framing system, renowned for its strength-to-weight ratio and seismic resistance-essential for Manila's location in the Pacific Ring of Fire. Key components include:

Columns: CBC's custom H-steel columns (HW 300×300×10×15) with base plates anchored to reinforced concrete foundations, designed to resist axial loads and lateral seismic forces.

Beams: CBC's I-steel beams (HN 400×200×8×13) spanning 8m, providing uniform load distribution and supporting the floor system.

Floor System: Composite steel decking (1.2mm thick) with 100mm reinforced concrete topping, a CBC signature solution that combines steel's durability with concrete's load-bearing capacity. This system reduces self-weight while enhancing floor stiffness.

Bracing System: Cross-bracing made of CBC's high-strength steel angles (L100×10) installed in column bays to resist wind and seismic lateral forces, complying with NSCP 2015 seismic design requirements.

CBC's pre-fabricated components are manufactured in ISO-certified facilities, ensuring precision and reducing on-site construction time by 30-40% compared to traditional concrete structures. This is particularly advantageous for Manila's urban construction sites with limited space and tight schedules.



Load calculations comply with NSCP 2015 and PD 1096, with CBC's structural engineering team optimizing component sizes to balance safety and cost-efficiency. All loads are analyzed using SAP2000 software, integrated with CBC's pre-engineered component database.





Composite floor system: 2.5 kN/m² (including steel decking, concrete topping, and finish).

Steel framing (columns, beams, bracing): Average 0.8 kN/m².

MEP systems (lighting, ventilation, signage): 0.3 kN/m².

Total dead load per floor: 3.6 kN/m².





Parking areas: 5.0 kN/m² (NSCP recommended value for passenger vehicle parking).

Ramps and circulation aisles: 7.5 kN/m² (to account for concentrated vehicle loads during acceleration/deceleration).

Roof (3rd floor top): 1.0 kN/m² (for maintenance and light equipment).





Seismic Load: Manila is classified as a high-seismic zone under NSCP 2015. The structure is designed for a seismic intensity of 7, with CBC's flexible steel framing system absorbing seismic energy through ductile connections, minimizing damage during earthquakes.

Wind Load: Designed for a basic wind speed of 150 km/h (Typhoon Category 3), common in the Philippines. CBC's bracing system and streamlined facade reduce wind resistance, ensuring structural stability.





Critical load combinations for design:

1.2DL + 1.6LL (Primary combination for floor slab and beam design).

1.2DL + 1.4LL + 1.0Seismic Load (Combination for seismic resistance check).

1.2DL + 1.4Wind Load + 0.5LL (Combination for lateral stability check).

CBC's steel components are sized to withstand all combinations, with a safety factor of 1.5 for primary structural members, exceeding NSCP minimum requirements.



Material Description	Specification (CBC Standard)	Quantity	Unit	Remarks
H-Steel Columns	HW 300×300×10×15 (6m length/piece, ~0.72t/piece)	24	Pieces	Pre-fabricated in CBC Hangzhou factory; includes 12% VAT, 5% tariff, and proportional sea freight
I-Steel Beams	HN 400×200×8×13 (8m length/piece, ~0.5t/piece)	48	Pieces	Custom-length from Hangzhou; import cost covers customs clearance fee
Steel Decking	1.2mm thick, galvanized (~0.0115t/m²)	1,500	m²	CBC anti-deformation design; packed in seaworthy crates
Angle Steel (Bracing)	L100×10 (6m length/piece, ~0.092t/piece)	96	Pieces	High-strength; import cost includes Form E certification fee
High-Strength Bolts	M24×80, Grade 10.9 (~0.002t/set)	1,200	Sets	CBC proprietary fasteners; heat-treated in Hangzhou factory
Reinforcing Steel	Deformed, Grade 40	12,000	kg	Compliant with NSCP 2015; bulk shipment from Hangzhou
Anti-Slip Steel Plates	6mm thick, chequered (~0.047t/m²)	200	m²	Anti-rust treatment; proportional port handling fee included
Fireproof Coating	Thin-type, intumescent	800	m²	2-hour fire resistance; hazardous goods shipping surcharge included
Anti-Corrosive Coating	Polyester-based	900	m²	CBC long-lasting formula; import documentation fee included
Import-Related Overheads	Fumigation, insurance, local agent fee	-	-	Covers IPPIC, marine insurance (0.3% of goods value), local clearing agent fee
Subtotal (CBC Steel Materials, Imported)	-	-	-	Total goods value PHP 16,637,800; total import cost PHP 2,041,458 (12.27% of goods value)

Note: All steel materials are supplied by CBC and imported from its Hangzhou, China factory-an ISO-certified facility specializing in pre-engineered steel components for international projects. The total steel weight is approximately 245 tons, shipped via full container load (FCL) from Ningbo Port (Hangzhou) to Manila Port, with 80% pre-fabrication completed in the Hangzhou factory to reduce on-site construction risks and labor costs. Import costs include international sea freight (PHP 1,742,000 for 245 tons), 5% customs tariff on steel products, 12% Philippine VAT, port handling fees, fumigation (IPPIC certificate), marine insurance, and local clearing agent fees. The imported material subtotal accounts for 41.4% of the total construction cost, maintaining CBC's cost-efficiency advantage despite import expenses, thanks to the factory's economies of scale and pre-fabrication capabilities. High-strength bolts adopt CBC's proprietary heat-treatment process, ensuring superior ductility compared to standard market products.







Parking Fee: 25 Philippine Pesos (PHP) per hour (Manila city center average, verified with local commercial parking operators).

Occupancy Rate: 70% (conservative estimate; urban commercial hubs in Manila average 65-75% occupancy).

Operating Hours: 24 hours/day, 365 days/year; excluding 5 days of annual maintenance (CBC recommends semi-annual light maintenance).

Total Construction Cost: PHP 30,041,458, detailed as: CBC steel materials (imported, PHP 18,679,258), labor (PHP 4,500,000), foundations (PHP 3,200,000), MEP systems (PHP 2,100,000), permits & inspections (PHP 862,200), and contingency fund (PHP 700,000). Even with import costs, CBC's pre-engineered system still reduces construction cost by 15% compared to reinforced concrete structures, as the modular design offsets additional shipping expenses.

Annual Operating Cost: PHP 1,320,000, detailed as: maintenance (PHP 380,000, 30% lower than concrete structures via CBC's anti-corrosive materials), security (PHP 420,000), utilities (PHP 350,000), and management (PHP 170,000); accounting for 7.3% of total construction cost.





Daily Revenue = Number of spaces × Occupancy rate × Operating hours × Fee per hour

Daily Revenue = 120 × 70% × 24 × 25 = PHP 50,400

Annual Revenue = 50,400 × 360 = PHP 18,144,000 (adjusted for 5 maintenance days)





Annual Operating Cost: PHP 1,320,000

Annual Net Profit = Annual Revenue - Annual Operating Cost = 18,144,000 - 1,320,000 = PHP 16,824,000

Return on Investment (ROI) = (Annual Net Profit / Total Construction Cost) × 100% = (16,824,000 / 30,041,458) × 100% ≈ 56%

Payback Period = Total Construction Cost / Annual Net Profit ≈ 30,041,458 / 16,824,000 ≈ 1.78 years

Break-Even Point: 650 days (approx. 21.4 months), calculated based on net profit and fixed costs, including amortized import expenses.





CBC's steel structure delivers long-term cost advantages that offset import expenses: annual maintenance cost is 30% lower than concrete structures (saving PHP 168,000 annually) and has a service life of over 50 years-20 years longer than conventional concrete parking garages. The structure's flexibility, enabled by CBC's pre-engineered framing from Hangzhou, allows for future expansion (e.g., adding solar panels or additional floors) without major modifications, enhancing long-term investment value. Additionally, CBC's steel systems are 100% recyclable, aligning with global sustainability trends and potential green building incentives in the Philippines (up to 5% tax rebate on annual operating costs, which can offset ~PHP 66,000 of annual expenses). Over a 10-year lifecycle, the total cost of ownership for CBC's imported steel structure is 19% lower than concrete alternatives, as the initial import premium is balanced by lower maintenance and longer service life, further solidifying the project's economic viability.



This 4-story steel parking garage project leverages CBC's pre-engineered steel structure system imported from its Hangzhou, China factory to meet Manila's urban parking needs, comply with local codes, and deliver exceptional economic returns. Despite import-related expenses, CBC's solutions maintain cost-efficiency through modular pre-fabrication, superior durability, and streamlined construction-offsetting shipping, tariff, and custom clearance costs. The system provides unmatched advantages in space optimization, seismic/wind resistance, and long-term operational value-critical factors for success in Manila's challenging urban and climatic conditions. The project's short payback period (1.78 years) and high ROI (56%), combined with CBC's global quality assurance and after-sales service for imported components, make it a highly viable investment for the Manila city center.
