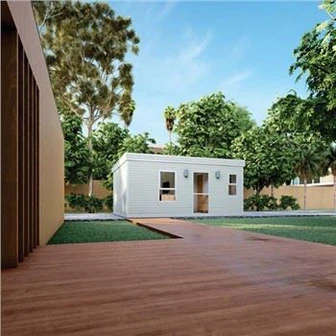

EPS Sandwich Panel Expandable Container Homes

EPS Sandwich Panel Expandable Container Homes:
20ft house size: 6360mm*5850mm*2530mm(L*W*H)
40ft house size: 11800mm*6245mm*2530mm(L*W*H)
Steel Frame: Painted steel columns and T=2.5~3.0 mm roof /floor frame beams
Color Choices: White, Red, Black, Grey or any other RAL color

Product Introduction



EPS Sandwich Panel Expandable Container Homes is a highly innovative housing solution that has gained immense popularity in recent times. These homes offer numerous benefits, including affordability, portability, durability, energy efficiency, and eco-friendliness. In this article, we will discuss the features and benefits of EPS Sandwich Panel Expandable Container Homes in detail.



Affordability: EPS Sandwich Panel Expandable Container Homes are highly affordable as the cost of production and transportation is significantly lower than traditional houses. Moreover, the modular design of these homes allows for easy and quick assembly, reducing construction costs even further. This makes EPS Sandwich Panel Expandable Container Homes an ideal option for budget-conscious homeowners.



Portability: These homes are highly portable and can be easily transported to different locations. The lightweight design of the EPS Sandwich Panel construction makes them easily movable by crane or truck. This makes it an excellent option for those who need temporary accommodations such as construction sites, disaster relief areas, and remote job sites.



Durability: EPS Sandwich Panel Expandable Container Homes are made from high-quality materials that are highly durable and can withstand harsh weather conditions. The EPS foam core provides excellent insulation, which not only keeps the home warm in the winter but also cool in the summer. Additionally, the steel frame construction makes these homes highly resistant to corrosion and damage caused by moisture, pests, and other environmental factors.



Energy Efficiency: EPS Sandwich Panel Expandable Container Homes are highly energy efficient as the EPS foam core provides excellent insulation. This means that less energy is required to heat and cool the home, leading to significant cost savings in terms of utility bills over time. Additionally, many of these homes come with energy-saving features such as solar panels, wind turbines, and greywater recycling systems.



Eco-Friendliness: EPS Sandwich Panel Expandable Container Homes are highly environmentally friendly as they use materials that are recycled and recyclable. The prefabricated design also means that there is less waste generated during assembly as compared to traditional construction methods. This makes these homes an excellent option for those who want to reduce their environmental footprint.



Expandability: EPS Sandwich Panel Expandable Container Homes are highly expandable, with some models featuring multiple modules that can be added to increase the living space. This makes it an excellent option for growing families or those who want to add additional rooms or features to their homes over time.



Customizability: EPS Sandwich Panel Expandable Container Homes are highly customizable, with a wide range of colors, finishes, and designs to choose from. This means that homeowners can create a living space that suits their individual needs and preferences.



In conclusion, EPS Sandwich Panel Expandable Container Homes offer numerous benefits, including affordability, portability, durability, energy efficiency, eco-friendliness, expandability, and customizability. These benefits make EPS Sandwich Panel Expandable Container Homes an excellent option for anyone looking for an affordable, versatile, and sustainable living solution.



20ft size

6360mm*5850mm*2530mm(L*W*H)

40ft size

11800mm*6245mm*2530mm(L*W*H)

Steel Frame

Painted steel columns and T=2.5~3.0 mm roof /floor frame beams

Color Choices

White, Red, Black, Grey or any other RAL color

Wall

50/75 mm EPS / PU sandwich panel

2) Exterior steel sheet (standard configuration): Corrugated 0.42mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2

3) Insulation layer (standard configuration): 75mm EPS, density≥12kg/m3

4) Interior steel sheet (standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2

Roof panel

1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5~3mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel

2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection

3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.

4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.

Floor

Frame structure + MGO board + PVC floor

Window

Double glazed PVC window / aluminum alloy window

Window screen is optional

Door

Aluminum alloy glass door / wooden door / PVC sliding door and steel door etc.

Bathroom

Shower, Toilet, Wash Basin, Towel Rack, Mirror, Paper box

Kitchen

cupboard “I” or “L” shape with washing basin, with white Quartz stone countertop

Electric system

Switch, socket, lamp, light, waterproof socked, distribution box etc.

(Australia standard, American standard, French standard, Chinese standard, European standard etc.)

Max. Wind load

110 km/h

Earthquake

8 grades

expandable container house layout
