Steel Structure Insulated Expandable Container House
20ft house size:Expanded Size: 6360mm*5850mm*2530mm(L*W*H)
40ft house size:Expanded Size: 11800mm*6245mm*2530mm(L*W*H)
Steel Frame:Painted steel columns and T=2.5~3.0 mm roof /floor frame beams
Color Choices:White, Red, Black, Grey or any other RAL color
Product Introduction
Name | Steel Structure Insulated Expandable Container House |
20ft house size | Expanded Size: 6360mm*5850mm*2530mm(L*W*H) |
40ft house size | Expanded Size: 11800mm*6245mm*2530mm(L*W*H) |
Steel Frame | Painted steel columns and T=2.5~3.0 mm roof /floor frame beams |
Color Choices | White, Red, Black, Grey or any other RAL color |
Wall and Roof panel | 50/75 mm EPS / PU sandwich panel. Corrugated 0.42mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2 |
Floor | Frame structure + MGO board + PVC floor |
Window | Double glazed PVC window / aluminum alloy window Window screen is optional |
Door | Aluminum alloy glass door / wooden door / PVC sliding door and steel door etc. |
Bathroom | Shower, Toilet, Wash Basin, Towel Rack, Mirror, Paper box |
Kitchen | cupboard “I” or “L” shape with washing basin, with white Quartz stone countertop |
Electric system | Switch, socket, lamp, light, waterproof socked, distribution box etc. (Australia standard, American standard, French standard, Chinese standard, European standard etc.) |
Max. Wind load | 110 km/h |
Earthquake | 8 grades |
Technical conditions
A. General Technical Condition
1) The structure can prevent a 8-magnitude earthquake.
2) Designed seismic grouping is the first group, the site characteristic cycle is considered to be 0.45s, the construction site category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
B. Materials
Normally, steel beams, steel columns, purlin are all used Q235B cold bended galvanized or painted steel frame
strength of steel: f=215N/m2
(1) Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load: 0.4 kN/m2
Live Load: 3.0 kN/m2
(2) Roof board
Structure Weight 0.3 kN/m2
Dead Load: 0.3 kN/m2
Live Load: 0.5 kN/m2
C. Calculation of Wind loading
According to the 15 Designed durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
Advantages
a. Strength and durability
Expandable Container House are designed to carry heavy wind and snow loads. They are also designed to resist harsh environments, such as salty, heavy rain, hot weather…strong cold rolled Q345 steel after galvanization and painting are anti rusty and can last long in these conditions; insulated roof and wall panels can protect from heat or cold.
b. Modular
All Expandable Container House are the same width and most have two standard length measurements which are 20ft and 40ft. This simplifies design, planning and transport. As they are already designed to interlock for ease of mobility during transportation, also embedded all plumbing and electrical system in the factory, structural construction is completed by simply emplacing them.
c. Low on-site cost
As mainly parts are finished and equipped already in the factory such: frame connecting, wall and roof insulation, doors, plumbing, electrical system...it minimized the installation requirements and the installation time so the installation cost is much lower.
Applications
1) For vocational house;
2) For tiny backyard house;
3) For mining site or construction site accommodation rooms;
4) For low-cost living homes;
5) For temporary home or temporary office;
6) For isolation room;
7) For classroom;
8) For refugee house;

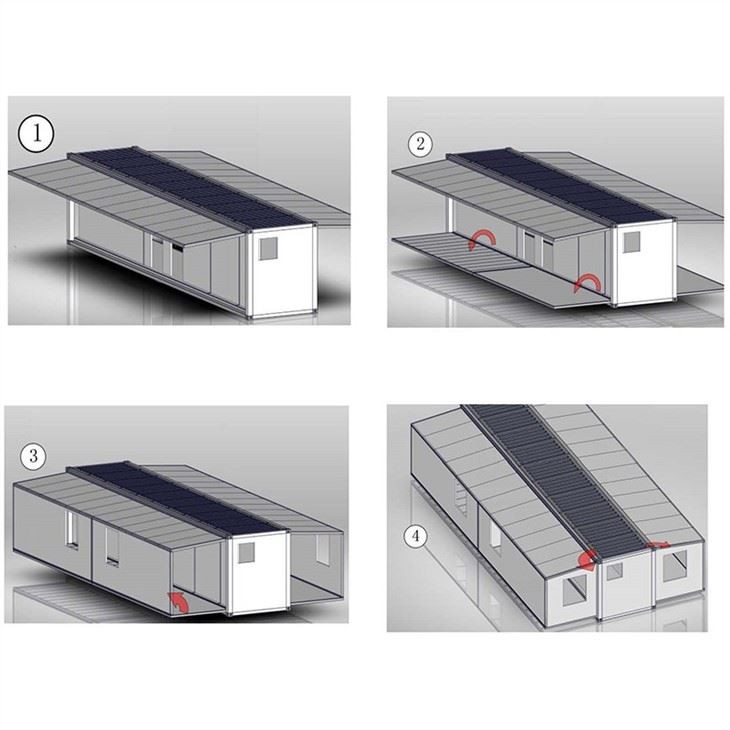

Installation
Fast and easy assemble of the 40FT Luxury Modular Modern Container House.
Usually, it will take 7-10 days to finish the assemble by 3-5 workers.
And we will offer the construction drawing to guide the installation, will also support online. It is very easy and fast.
1. Foundation
2. Lay down the chassis;
3. Erect the wall panels;
4. Connect the electrical and plumbing;
5. Install the doors and windows;
6. Install the flashing, skirting;
7. Finished
Related Projects
Project Name | SK Chile Camp |
Finished Time | Year 2014. |
Project Place | Chile |
Building Area | 256 units |
Project Description | Custom made camp designs for SK in Chile, used as office, accommodation and public areas, including walkway and part roofs. Chile standard electrical system |
Project Name | Camp In Lao |
Finished Time | Year 2016 |
Project Place | Lao |
Building Area | 120 units |
Project Description | Standard 20ft container in two floors for accommodation. Some with bathroom, also include some public shower and toilet. Provided the whole package including staircase and roof system. |
Project Name | Lao facility |
Finished Time | Year 2017 |
Project Place | Lao |
Building Area | 26 units |
Project Description | Affordable Flat Pack Container Homes office block and other facilities including steel structure warehouse |
Project Name | Venezuela Housing |
Finished Time | Year 2013 |
Project Place | Venezuela |
Building Area | 560 units |
Project Description | Container house for low-cost housing project in Venezuela. |
Project Name | SMMCI Project |
Finished Time | Year 2013 |
Project Place | South Manila, Philippines |
Building Area | 2600 S.qm warehouse plus 1700sqm office/camp facility |
Project Description | For "San Mining CONST. CORP.", use as onsite warehouse, office, camp and other facilities. Full package provided by us. |
Project Name | Camp in Lao |
Finished Time | Year 2019 |
Project Place | Lao |
Building Area | 56 units |
Project Description | Accommodation and office blocks made of flat pack container houses; most are two floors. Meets with AU standards. |
FAQ
Q. Are the electricity and water system are finished installation in factory? Are the wires go inside the wall panels?
A. Yes, both electricity and water system are installed in factory, you just need to connect water supply locally, the connector is in the back of the house. All the wires are hidden inside walls.
Q: Can you provide me DWG format drawings? I want to make some changes?
A. If you want to make some changes in drawings, you could tell us the details, and we can do you a favor.
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisors guiding installation is available. We can do turnkey job for some kind of projects.
Q: How to ensure the product you supply is what we want exactly?
A: Before placing order, our sales and engineers’ team will provide you the suitable solution according to your requirements. Proposal drawing, Shop drawing, 3D drawing, Materials photos, finished projects photos are available, which will help you understand the solution we provided deeply.
Q: What's your supply capacity?
A: Annual production capacity details are as follows:
Container house: 7200sets
Prefab house; 564000 square meters
Steel structure: 360000 square meters.
Q: Do you provide on-site installation service for a Steel Structure Insulated Expandable Container House project?
A: 1) Only large projects provide installation services
2) General projects, we can provide Installation guide service based on customers’ request.
3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation, translation fee, and ensure staff’s health and safety.
