Two Floor Flat Pack Container Homes
Two Floor Flat Pack Container Homes Specifications:
Weight:1500kg
Color: White, blue, green, brown, or customized
Roof: 2.5-3mm Hot galvanized steel structure with 4 corner casts and injected PU foaming.
Pacing: flat packing or SOC packing;
Capacity: 3000 units per month
Product Introduction
Two Floor Flat Pack Container Homes are built by standard 20ft flatpack units, we can connect them for larger space requirement and stack them to save land.
Single unit of flatpack container house is composed by container roof, container base, corner posts and sandwich wall panels. all materials are recyclable so the whole project is eco-friendly. all components are light can be handled manually, that's why it's perfect for projects in remote areas.

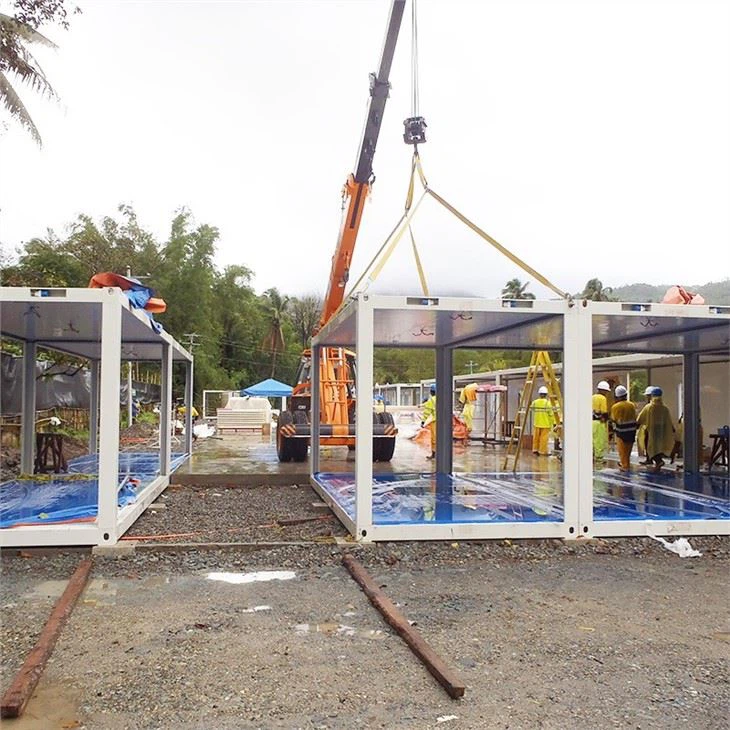

When install a two floor flat pack container home project, we can finish the assembling of all single units then lift them to be connected, refer to above MTI accommodation project; or we can connect all frames first then install the wall panel.
Main material | Galvanized steel structure with sandwich panel wall and doors, windows, etc. |
Weight | 1500kg |
Color | White, blue, green, brown, or customized |
Roof | 2.5-3mm galvanized steel structure with 4 corner casts and injected PU foam insulation. |
Columns | 3mm galvanized steel profile, customized sections |
Connection kits | PVC Connection kits for ceiling, floor and walls. |
Electricity | 3C/CE/CL/SAA Standard, with distribution box, lights, switch, sockets, etc. |
Optional accessories | Furniture, sanitary, kitchen, A/C, electrical appliance for accommodation, office, dormitory, toilet, kitchen, bathroom, shower, steel roof, cladding panels, decorative material, etc. |
Production
We have full production line using the most advanced machines such as: automatical cutting, bending, punching, robot welding, automatical spary painting line, PU injecting platform, sandwich panel production line...our capacity is 3000 units per month for flatpack container house.
The materials for Two Floor Flat Pack Container Homes are: Q355 galvanized steel cold rolled for main frames; steel sheet for the sandwich wall panel is aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um, good materials can guarantee the lifetime of the building reaches to 15~20 years.
Please refer to below video for our production line:
Advantages
No. | Item | CBC Two Floor Flat Pack Container Homes | Other Brand Prefabricated House |
1 | Steel Structure | Galvanized steel beams in 3mm thickness, high structure strength and durability | only painted steel beams in 2~2.5mm thick, low structure strength and not durable |
2 | Electrical System | All embedded in the roof and wall panels, save onsite labor cost | need to be installed onsite, cause extra onsite labor cost |
3 | Plumbing Pipes | Pre-installed in the base frame, save onsite labor cost | need to drill holes and install on site, cause extra onsite labor cost |
4 | Window & Door | pre-installed in the wall panels, save onsite labor cost | need to be installed onsite, cause extra onsite labor cost |
5 | Steel Pre-treatment | CBC advanced sand blasting equipment line, improve painting adhesion and durability | outsourced processing or no pretreatment, low painting adhesion and durability |
6 | Painting | Automatical painting line to ensure good painting quality | outsourced painting manually, can't ensure the quality |
7 | advanced paint technology, water-based painting available, environment friendly | only oil-based painting, cause damage to the environment | |
8 | Degree of Prefabrication | 70-90% as per customer requirement, save onsite labor cost | around 30% or only loosen parts available, cause extra site labor cost |
10 | Fast Installation | 4 workers could install 2 units in one day. | Need many workers on site to install. |
11 | Packing & Delivery | special steel packing pallets to protect materials within the shipping container during the long-distance shipping | no packing frame, easy to cause damage to the material |
12 | SOC packing method for short-distance transportation, no need to load into shipping container, save the shipping cost | only can load into shipping container |
Applications
Construction site office or accommodation camp;
Mining site office or accommodation camp;
Isolation rooms;
COVID hospital;
Temporary office or living house
Low-cost house;
Granny backyard flat;
Kiosk booth;
Guard house;
Rent for other temporary use.
Related Projects
Indonesia:
PT Merdeka accommodation camp-288 rooms with ensuite;
AMMAN accommodation camp-480 rooms with ensuite;
Philippines:
SCPA workshop-3200sqm with Two Floor Flat Pack Container Homes inside
SG Eco workshop-3600sqm warehouse with two floors office in 250sqm,
Iriga Factory,
BBL Camp—24 rooms accommodation camp with public services such as dining hall, gym room;
Maria De Sio Resort-320sqm
SMMCI Camp—1300sqm office building built by flatpack container house and 2600sqm warehouse
PNG:
PNG concrete Development—13 steel structure warehouse in around 1500sqm each;
Virgin Island: 10000sqm Distribution center
New Caledonia:
Alain's warehouse-five floors warehouse building with cargo lift, in total 1750sqm
Le Tigre Warehouse—three floors warehouse with ramp, total 3700sqm
Mozambique:
Nakala Resort—32 units of light gauge steel house as a beach side resort;
Tonga: Tonga Power Plant—3600sqm
Reunion Island: ARC-18/19 House Project—240sqm
FAQ
Q. Who are you?
A. CBC is a top provider for customized building solutions based in Hangzhou city China.
Q: What can you do for me?
A. CBC provides one-stop building solutions for projects such as:
Steel structure warehouse;
Steel structure apartment;
Steel structure workshop;
Steel structure shopping mall;
Steel structure car-park;
Mining camp;
Construction site camp;
Temporary house;
Low-cost house;
Vocational house;
Luxury residential house;
Resort villa;
Refugee house;
Isolation room;
Tiny House Expandable Container Homes
Q: What about the installation?
A: We'll provide the detailed installation drawing, supervisor guiding installation is also available. We can do turn-key job for some kind of projects.
Q: What’s the benefits to cooperate with CBC?
A: To cooperate with CBC so that you can benefit from the professional services provided by the engineer team and commercial team:
Quick response;
Cost saving;
Free design;
Full range of options to meet with your special requirements;
One-stop solution to save your time and min. the communication troubles;
BIM system which can be relied for a lifetime period of the project;
Q: What's your supply capacity?
A: Annual production capacity details are as follows:
Container house: 7200sets
Prefab house; 564000 square meters
Steel structure: 360000 square meters.
Q: How can you guarantee the project can be approved by local authority?
A: 1) All customized designs based on your detailed requirements;
2) All materials can meet with local standards;
3) Structure calculations provided free to help to get approval;
4) More than 10 Years’ oversea project experiences prepared us well for any questions.
Q: What’s the process to start the cooperation?
A: To let us know your requirements or to send the designs;
Confirm our customized design for you based on above requirements;
Confirm the quotation based on our customized designs;
Arrange the down payment;
Confirm the shop drawings and make clear how we can fulfill your requirement;
Pass the inspection after around 30 days of production;
Arrange the balance payment;
Receive and study the installation instructions;
Receive the materials;
Finish the installation following our instructions and on-line engineering support;
Use our BIM system for a lifetime after sales maintenance service;
Appricate your recommendation or re-order;
Q: How do you guarantee the quality of the Two Floor Flat Pack Container Homes?
A: Quality is the future. Quality is the top priority.
We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.
We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
