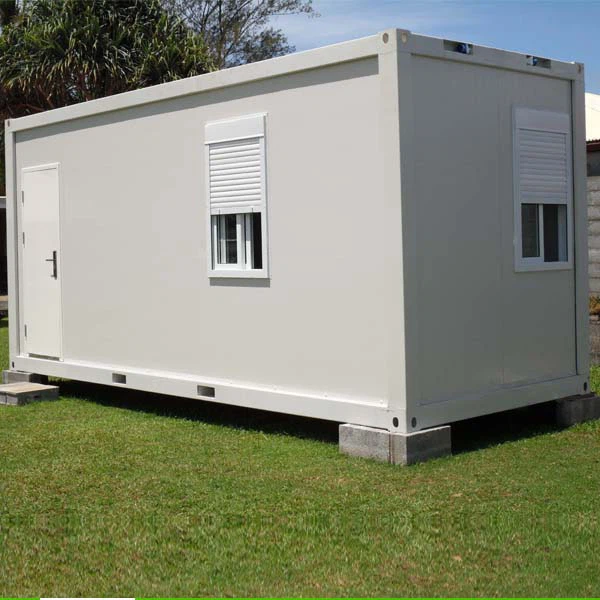

Versatile Flat Pack Container Homes
Versatile Flat Pack Container Homes specifications
1) 20ft: 6055*2435*2896mm
2) 40ft: 12192*2435*2896mm
3) Roof Type: Flat roof with organized internal water draining system, with injected PU insulation
4) Story: ≤3 floors
5) Lifetime: 15~20 years
Product Introduction
Versatile Flat Pack Container Homes is a ready-made house which can be used as vocation house, temporary storage, office, isolation room, backyard granny flat, roadside small shops...they can be combined together to achieve large space and meet with special requirements for projects such as: classroom block, mining site accommodation, construction site accommodation, show room, office building...
Specifications and materials of our Versatile Flat Pack Container Homes as below:
Item | Remark |
A: Standard unit materials | |
2.435W*6L*2.791H flatpack container block | Each unit including: 1: Chassis ( steel structure+18mm fiber-cement board +1.8mm PVC floor sheet), assembled in our workshop; 2: Roof system (steel structure+0.4mm color-bond steel roof sheet+100mm glass wool insulation+0.4mm color-bond steel ceiling sheet), assembled in our workshop 3: Columns: custom made cold rolled profiles, galvanized and painted; 4: electrical system (lamp, switch, socket, cable, DB): embedded in roof and wall, only need to be connected onsite; |
wall panel | 75mm EPS sandwich panel, both sides are 0.4mm thickness color bond sheets, PU, rockwool or glass wool insulation also as options; |
steel door D1 | steel frame: 860x2080mm for main entrace door |
sandwich panel door D2 | steel frame: 720x2000mm for internal door |
aluminum window W1 | Alu frame+5mm single glazed: 800x1100mm |
aluminum window W2 | Alu frame+5mm single glazed: 800x400mm for bathroom |
exhaust fan | PVC frame for bathroom |
PVC trim plate | skirting, corner and ceiling |
Connectors | include bolt, flashing, floor plate and article rubber |
B: Other components | |
steel stair | W=1.2m, HDG or painted |
steel handrail | H=1.05m, HDG or painted |
stair awning | W=1.2m, HDG or painted |
walkway | W=1.75m, HDG or painted |
LGS roof frame | Pitch roof design for better water-proof |
color bond roof sheet | 0.4~0.6mm thickness, customized colors |
color bond ceiling sheet | 0.3~0.5mm thickness, drying area can also use plaster board |
color bond flashing | 0.5~0.5mm color bond steel plate |
PVC gutter | |
PVC rain pipe | |
C: Sanitary ware | |
toilet | Apply to local standard |
Wash basin | Apply to local standard |
shower room | Apply to local standard |
plumbing | Apply to local standard |
Design Parameters
specification | 1) 20ft: 6055*2435*2896mm |
2) 40ft: 12192*2435*2896mm | |
3) Roof Type: Flat roof with organized internal water draining system and injected PU insulation; | |
| 4) Story: ≤3 floors | |
Design parameter | 1) Life span: up to 20years |
2) Floor Live load: 2.0KN/m2 | |
3) Roof Live load: 1.0KN/m2 | |
4) Wind load: 0.6KN/m2 | |
5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4 |
Advantages
Advantages of our Versatile Flat Pack Container Homes are:
Integrated PU foamed roof, 100% water proof and better insulation(Compare to: glass wool or EPS sandwich panel roof, many joints can not be 100% water-proof, lower strength);
Embedded electrical and plumbing system(Compare to: install onsite and surface mounted);
Prefabricated doors and windows(Compare to: install onsite);
8 hours assembling time for one unit(Compare to: long time confusing installation, no guidance or instructions, problems onsite);
SOC packing, one unit per package(Compare to: loose cargo, a mess when arrive at site);
With gutter and pipe system, can also add extra LGS roof;
With structure calculation;
Full set of concept designs and installation instructions
Can build in three floors
Free combination to achieve your space requirements
Different color options
Competitive price
Can be moved or disassembled and reassembled
Can with bathroom
We have also expandable container house for low cost housing projects
We have detachable container house for low cost camp project
We have steel structure for warehouse/workshop project
Applications
Construction site office or accommodation camp: fast installation and can be easily relocated after the project finished, very convenient for construction companies and can also save a lot of cost.
Project case: this is a camp project for SK in Chile, our Versatile Flat Pack Container Homes are used for site offices, accommodations and other public ficilities inside the desert area in north Chile.
Mining site office or accommodation camp: easy to handle in the remote mining areas, lifetime can reach to 15~20 years. because other than the galvanized steel frames, the steel sheet for the sandwich wall panel is aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um.
Less concrete foundation requirements to protect the land and save construction cost, Also, can withstand in heavy wind and highly corrosive conditions.
Project case: MTI accommodation camp in their new mining site, total 8 blocks in three floor, each have 36 rooms with individual bathroom. we provided also pitch roof system and walkway system.

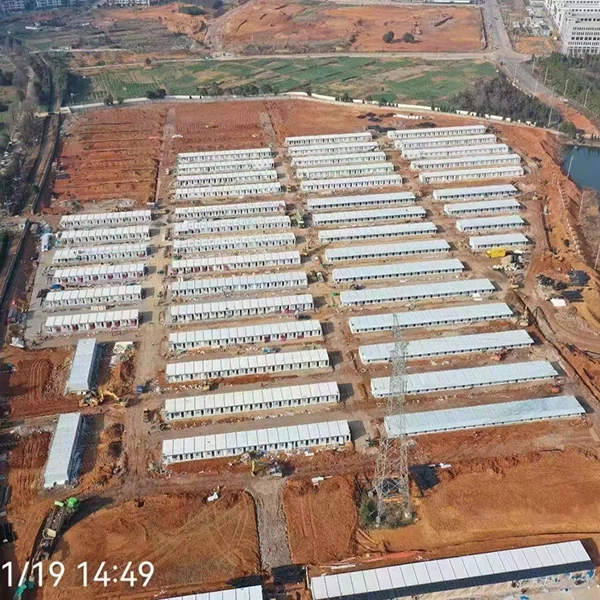

Isolation rooms: massive production capability and fast installation made the flatpack to be the perfect solution during the pandemic. It can be re-located and re-used after wise to recover part of the investment, simple requirements for foundation also can protect the land and save the construction cost.
Project case: Yiwu isolation room during the pandemic in year 2022.
Temporary office or living house: ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
Project case: container house on roadside for temporary living in PNG
Low-cost house: affordable cost vs. 15~20 years lifetime makes the flatpack to be the most competitive solution for low-cost housing projects. What's more, it can be built in a short time and massive production is available.
Project case: low-cost housing schedule in Venezuela for homeless, total 654 units in different cities including public service ficilities. customized red container frames.
Granny backyard flat: ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
Project case: put the container house directly in backyard, no need foundation or any civil work at all. can also be re-located easily.
FAQ
Q: Are you a factory or a trading company?
A: Hangzhou Xixi Building Co., LTD. is a factory located in Xiaoshan District, Hangzhou, China.
Q: What's your supply capacity?
A: Annual production capacity details are as follows:
Container house: 7200sets
Prefab house; 564000 square meters
Steel structure: 360000 square meters.
Q: How to install the PU Insulated Expandable Container Homes?
A: We will provide detailed instructions along with installation videos. Professional installation engineers’ team is also available for some special oversea projects at client’s cost if it is necessary.
Q: How long is your delivery time for Iso Standard 20FT Flat Pack Container House?
A: Will be normally 30 days according to different order Qty and requests. This has included free architectural drawings, shop drawings, installation instructions.
Q: How do you guarantee the quality of the products?
A: Quality is the future. Quality is the top priority.
We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.
We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
Q: How can I get a quotation for my project?
A: We can offer detailed quotations according to your drawing. If you have no drawing, our designer can offer you some designs based on your detailed requirements. Quotations will be provided after the confirmation of the designs.
Q: How do you guarantee the quality of the Versatile Flat Rack Container Homes?
A: Quality is the future. Quality is the top priority.
We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.
We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
