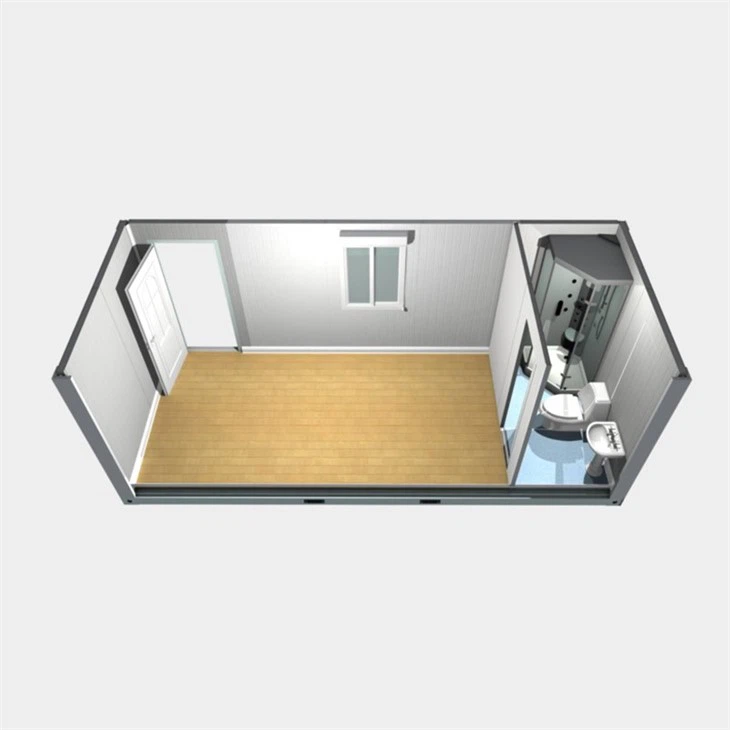

Innovative Modular Design Flat Pack Container House
Length:6058mm / 6000mm or customized
Width:2438mm /3000mm or customized
Height:2600mm / 2791mm / 3000mm or customized
Clear height indoor:5800mm*2200mm*2300mm, it is changeable
Product Introduction
|
Innovative Modular Design Flat Pack Container House |
UNIT |
1 |
INCLUDING: ① 1PC INTEGRATED BASE:(STEEL PARTS+18mm FIBER CEMENT+1.8mm PVC FLOOR), ② 1 PC INTEGRATED ROOF:(STEEL PARTS+0.42mm COLORED STEEL SHEET ON BOTH SIDES+60mm FIBERWOOL+CABLE+OUTDOOR INLET SOCKET ② 4 COLUMNS, 2.5MM, ④2 LIGHTS; 1 SWITCH; 2 SOCKET; 220V DISTRIBUTION BOX |
|
EXTERNAL WALL |
PC |
14 |
75mmEPS SANDWICH BOARD,0.42mm COLORED STEEL SHEET ON BOTH SIDES,EPS DENSITY 12㎏/m3,INCLUDING TWO CONNECTORS EACH，SIZE：W1158*H2300mm。 |
|
M1 |
UNIT |
1 |
STEEL DOOR 840*2000 |
|
C1 |
UNIT |
1 |
W800*H1100PVC SLIDING WINDOW+FLY SCREEN |
|
INNER TRIMMING |
UNIT |
1 |
INCLUDING SHIRTING LINE, ROOF AND CORNER DECORATION |
Frame: Q355 steel structure is hot-dip galvanized and completed welding, coated with hot galvanized zinc 100g/m2+surface uses electrostatic powder treatment finish 100um. Q355 Steel is better than Q235, and with HDG treatment with powder spraying, it would keep the frame in high anti-corrosion.
Roof: For the roof, our cases is PU foaming (45kg/m3 which meets standard of PIR) which has high integrity for the airtightness which would be better than common EPS sandwich panel or glass wool as roof insulation.
Panel: For the sandwich panels, we remark with density and thickness of both sides of steel sheets, in the same time, you can find the treatment with Aluminum zinc magnesium AMZ galvanized 100g/m2 with PE baking finish 20/5um. which can last more than 25 years.
Advantages
|
No. |
Item |
CBC Luxury Design Flat Pack Container House |
Evolution |
Other Brand Prefabricated House |
Evolution |
|
1 |
Steel Structure |
Galvanized steel beams in 3mm thickness, high structure strength and durability |
★★★★★ |
only painted steel beams in 2~2.5mm thick, low structure strength and not durabe |
★★★ |
|
2 |
Electrical System |
All embedded in the roof and wall panels, save onsite labor cost |
★★★★★ |
need to be installed onsite, cause extra onsite labor cost |
★★★ |
|
3 |
Plumbing Pipes |
Pre-installed in the base frame, save onsite labor cost |
★★★★★ |
need to drill holes and install on site, cause extra onsite labor cost |
★ |
|
4 |
Window & Door |
pre-installed in the wall panels, save onsite labor cost |
★★★★★ |
need to be installed onsite, cause extra onsite labor cost |
★★★ |
|
5 |
Steel Pretreatment |
CBC advanced sand blasting equipment line, improve painting adhesion and durability |
★★★★★ |
outsourced processing or no pretreatment, low painting adhesion and durability |
★★★ |
|
6 |
Painting |
CBC painting line to ensure good painting quality |
★★★★★ |
outsourced painting, can’t ensure the painting quality |
★★★ |
|
7 |
advanced paint technology, water-based painting available, environment friendly |
★★★★★ |
only oil-based painting, cause damage to the environment |
★★★ |
|
|
8 |
Degree of Prefabrication |
70-90% as per customer requirement, save onsite labor cost |
★★★★★ |
around 30% or only loosen parts available, cause extra site labor cost |
★★ |
|
10 |
Fast Installation |
4 workers could install 2 units in one day. |
★★★★★ |
Need many workers on site to install. |
★★ |
|
11 |
Packing & Delivery |
special steel packing pallets to protect materials within the shipping container during the long-distance shipping |
★★★★★ |
no packing frame, easy to cause damage to the material |
★★★ |
|
12 |
SOC packing method for short-distance transportation, no need to load into shipping container, save the shipping cost |
★★★★★ |
only can load into shipping container |
★★★ |
Applications
Construction site office or accommodation camp;
Mining site office or accommodation camp;
Isolation rooms;
COVID hospital;
Temporary office or living house
Low-cost house;
Granny backyard flat;
Kiosk booth;
Guard house;
Rent for other temporary use.
Related Projects
Indonesia:
PT Merdeka accommodation camp-288 rooms with ensuite;
AMMAN accommodation camp-480 rooms with ensuite;
Chile:
FRIOSAN cold storage—1600sqm warehouse with two floors office area, in-depended dining and access room
Reduccion casa
Casa Laguna Verde-156sqm two floors house
Austrian:
Polyfit workshop and office building—in total around 2000sqm, combine steel structure, light gauge steel frame and second-hand shipping containers;
Philippines:
SCPA workshop-3200sqm with Innovative Modular Design Flat Pack Container House inside
SG Eco workshop-3600sqm warehouse with two floors office in 250sqm,
Iriga Factory,
BBL Camp—24 rooms accommodation camp with public services such as dining hall, gym room;
Maria De Sio Resort-320sqm
SMMCI Camp—1300sqm office building built by flatpack container house and 2600sqm warehouse
PNG:
PNG concrete Development—13 steel structure warehouse in around 1500sqm each;
Virgin Island: 10000sqm Distribution center
New Caledonia:
1-Alain's warehouse-five floors warehouse building with cargo lift, in total 1750sqm
2-Le Tigre Warehouse—three floors warehouse with ramp, total 3700sqm
Mozambique:
Nakala Resort—32 units of light gauge steel house as a beach side resort;
Tonga: Tonga Power Plant—3600sqm
Reunion Island: ARC-18/19 House Project—240sqm
FAQ
Q: Are you a factory or a trading company?
A: Hangzhou Xixi Building Co., LTD. is a factory located in Xiaoshan District, Hangzhou, China.
Q: What's your supply capacity?
A: Annual production capacity details are as follows:
Container house: 7200sets
Prefab house; 564000 square meters
Steel structure: 360000 square meters.
Q: How to install the PU Insulated Expandable Container Homes?
A: We will provide detailed instructions along with installation videos. Professional installation engineers’ team is also available for some special oversea projects at client’s cost if it is necessary.
Q: How long is your delivery time for 40FT Luxury Modular Modern Container House?
A: Will be normally 30 days according to different order Qty and requests. This has included free architectural drawings, shop drawings, installation instructions.
Q: How do you guarantee the quality of the Innovative Modular Design Flat Pack Container House
A: Quality is the future. Quality is the top priority.
We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.
We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
