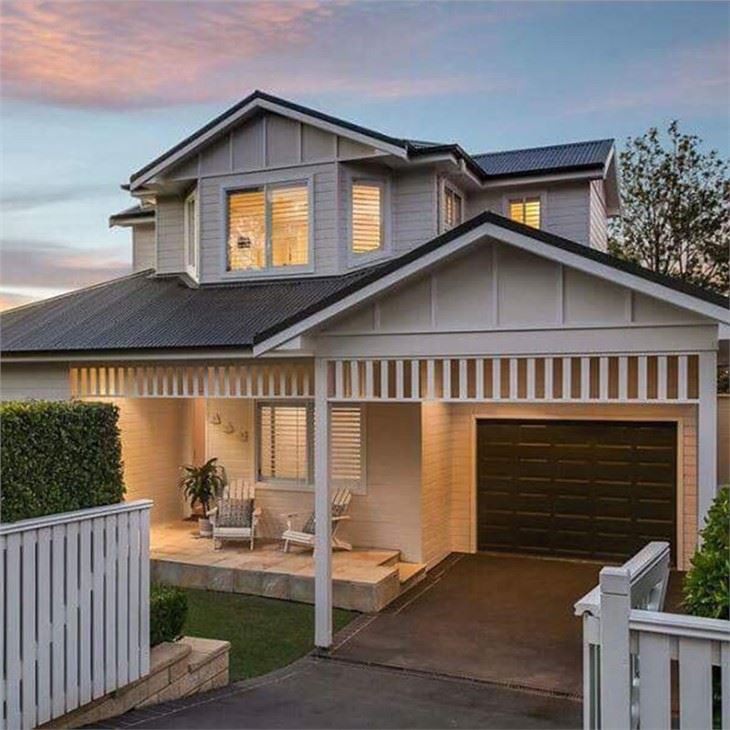

Two Floors Light Gauge Steel Prefab Homes
Project location: Philippines
Project time: Nov. 2017
Category: Residential community
Product type: LGS house
Project scale: 10 sets
Product Introduction
|
Main Frame for Two Floors Light Gauge Steel Prefab Homes |
||
|
Light steel keel frame |
kg |
G550 Al-Zn Galvanized, AZ150 |
|
Steel structure |
kg |
Q235，HDG |
|
Maintenance system |
||
|
Roof System |
㎡ |
0.5mm Color Steel Glazed Tile+30mm XPS Insulation Strip + Wooden batten + Roof Moisture-proof House wrap +12mm OSB board +150mm Glass Fiber insulation（Glass Fiber Owens Corning） |
|
㎡ |
||
|
m |
||
|
㎡ |
||
|
㎡ |
||
|
㎡ |
||
|
External Wall System |
㎡ |
12mm Eterpan planks+30mmXPS Insulation Strip + Wooden batten + 12mm OSB Board +Roof Moisture-proof Housewrap+12mm Jason Plaster Board(Use Single-layer 12mm Fiber Cement Board instead of 12mm Plaster Board for the Inner Side of Outer Walls in Toilet) +12mm OSB board（Just for Kitchen Wall） |
|
㎡ |
||
|
m |
||
|
㎡ |
||
|
㎡ |
||
|
㎡ |
||
|
㎡ |
||
|
㎡ |
||
|
Internal Wall System |
㎡ |
12mm Jason Plaster Board+100mm Glass Fiber insulation（Owens Corning）+12mm Jason Plaster Board(Single-layer Fiber Cement Board instead of Plaster Board for the Walls in Toilet) |
|
㎡ |
||
|
㎡ |
||
|
Wall Ceramic Tiles for Toilet Room |
㎡ |
300*450mm Wall Tile |
|
Floor Board |
㎡ |
600*600mm (Ceramic, excluding toilet) |
|
㎡ |
300*300mm (Ceramic, just including toilet & bathroom) |
|
|
㎡ |
Ceramic tile skirting line |
|
|
Floor deck + stairs |
㎡ |
3m thickness, 1m width |
|
㎡ |
18mm Fiber Cement Board |
|
|
㎡ |
100mm Glass Fiber insulation |
|
|
㎡ |
12mm OSB board |
|
|
㎡ |
300*300mm ceramic tile (Anti-skid) |
|
|
Ceiling |
㎡ |
6mm Fiber Cement board |
|
㎡ |
9mm Jason Plaster Board Ceiling（Including Primary & Secondary Keel） |
|
|
Window (AU, UL or EU standard) |
Aluminum Alloy Frame Double Glass Window, comply with AS2047 standards, Glass complies with AS/NZS2208, AS1288. |
|
|
㎡ |
ALU. Sliding window |
|
|
Door |
pc |
W920*H2340mm ALU. swing door |
|
pc |
W820*H2340mm MDF door |
|
|
pc |
W820*H2340mm MDF sliding door |
|
|
Flashing & Edge Trimming Fittings |
㎡ |
Self-bending Color Steel Sheet (Roof Ridge, Gable Wall Wrapping Cover) |
|
Color Steel Fascia |
m |
Color Steel Verge Board (With Brackets) |
|
Aluminum Alloy Profiles |
kg |
Edge Covering For Corners, Door & Windows, Inside Corners. |
|
12mm Fiber Cement Board |
㎡ |
outdoor decoration |
|
Accessory |
||
|
Hardware Fittings |
set |
Light Steel Wall & Roof Accessories |
|
Glass Glue |
set |
|
|
Inlet & Outlet Drain System (AU, UL or EU standard) |
m |
80*80mm Aluminum Square Tube |
|
m |
Aluminum Eave Gutter（Including Accessories） |
|
|
set |
1 Kitchens+3 Toilets（Inlet & Outlet Water Pipe & Accessories） |
|
|
Toilet System (AU, UL or EU standard) |
set |
Including Wash Basin, Wall mounted Sterilizer and Mirror (Including AU & WM Certificate) |
|
set |
1.5*0.9*2m (glazed+SS304 fittings) |
|
|
set |
760*1670mm |
|
|
pc |
Ceramic (WM Certificate) |
|
|
Cabinet (AU, UL or EU standard) |
m |
Cabinet Melamine Plate Cover，Man-made stone mesa（Color is decided by customer） |
|
pc |
||
|
pc |
Including WM Certificate |
|
|
Electricity (AU, UL or EU standard) |
set |
18 Lights 18 Switches 24 Sockets 1 Distribution Box（Including all the required wires and wire tubes，AC, Hot water heater, electric fan, Tel socket hole） |
Advantages
Fire and insect resistance-----All the keels are galvanized, no need to use pesticide, preservative or glue. The wall system is filled with mineral wool and the steel frame system is fireproof.
Artistic and comfortable-----the interior decoration is per your wish. And the air quality is good.
Snow resistance: max. 2.9KN/m2as required
Applications
Light steel living house;
Light steel apartment building;
Light steel affordable house;
Light steel luxury villa;
Light steel structure restaurant;
Light steel frame office building
Light steel frame hotel building;
Light steel frame school building;
Light steel structure hospital building;
Light steel structure vocational resort house;
Light steel prefab granny flat;
Light steel frame modular pod;
Other prefab light weight house;
Related Projects
|
Project Name |
Raul's Apartment |
|
Finished Time |
Year 2019, Nov. |
|
Project Place |
Coron Philippines |
|
Building Area |
430 sq.m |
|
Project Description |
Design and provide all materials, provide installation instructions and online support, also have good construction partner there to handle the whole project very well. |
|
Project Name |
Youhan's office |
|
Finished Time |
Year 2020, March |
|
Project Place |
Manila |
|
Building Area |
300 sq.m |
|
Project Description |
Design and provide all materials, provide installation instructions and online support, used for sales office and a small warehouse. |
|
Project Name |
Buzz Restaurant |
|
Finished Time |
Year 2019, July |
|
Project Place |
Coron Philippines |
|
Building Area |
360 sq.m |
|
Project Description |
Design and provide all materials, provide installation instructions and online support, help the owner to build this restaurant within 4 months. |
|
Project Name |
Alain's warehouse |
|
Finished Time |
Year 2018 ongoing |
|
Project Place |
New Caledonia |
|
Building Area |
1150 S.qm |
|
Project Description |
Five floors steel structure warehouse building with elevator, heavy wind loading. |
|
Project Name |
Le Tigre Warehouse |
|
Finished Time |
Year 2018 ongoing |
|
Project Place |
New Caledonia |
|
Building Area |
3158 S.qm |
|
Project Description |
Three floors, with lift and ramp for track, heavy floor loading, wind load 275km/h, all HDG steel structure. |
Project location: Philippines
Project time: Nov. 2017
Category: Residential community
Product type: LGS house
Project scale: 10 sets
Project feature: This is a project for local resort owner BBL, as accommodation and other public service houses for the whole resort.
FAQ
Q: What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure.
Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
High corrosion region: use corrosion resistant material, or paint anticorrosive coating.
Q: What’s the process to start the cooperation?
A:
To let us know your requirements or to send the designs;
Confirm our customized design for you based on above requirements;
Confirm the quotation based on our customized designs;
Arrange the down payment;
Confirm the shop drawings and make clear how we can fulfill your requirement;
Pass the inspection after around 30 days of production;
Arrange the balance payment;
Receive and study the installation instructions;
Receive the materials;
Finish the installation following our instructions and on-line engineering support;
Use our BIM system for a lifetime after sales maintenance service;
Appricate your recommendation or re-order;
Q: How do you guarantee the quality of the Two Floors Light Gauge Steel Prefab Homes?
A: Quality is the future. Quality is the top priority.
We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.
We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
