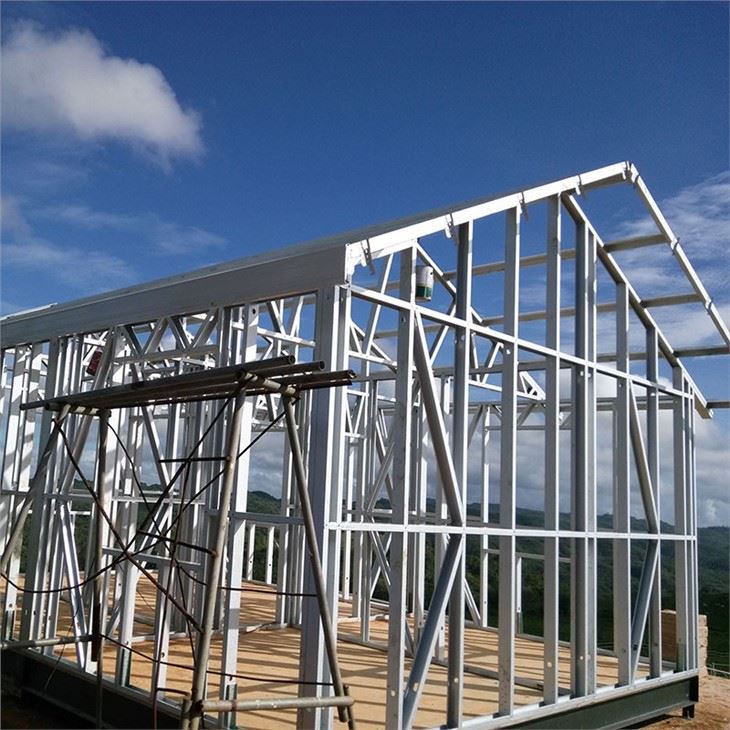

Environmentally Friendly Steel Prefab Homes
Place of Origin:Zhejiang, China
Brand Name:CBC
Wall:OSB board, gypsum board
Window:Aluminum frame
Product Introduction
Environmentally Friendly Steel Prefab Homes Material List | |
Wall System | |
75mm ALC panel | As external wall cladding |
House wrap | |
12mm OSB board | |
140mm glass wool insulation | |
12mm Gypsum Board | For dry area |
12mm waterproof Gypsum Board | For wet area |
garage door | |
Alu shutter windows + fly screen | Alu. Frame + single temper glass |
external Alu sliding/swing door | Alu. Frame + single temper glass |
internal MDF door | 900*2080mm, MDF swing door |
Ceiling & Roof System | |
House wrap | |
12mm OSB board | |
140mm glass wool insulation | |
steel ceiling keel | For ceiling |
12mm Gypsum Board | For ceiling |
12mm waterproof Gypsum Board | Ceiling for wet area |
12mm fiber cement board | For outdoor ceiling |
gutter | ALU |
drop pipe | PVC pipes |
After-sale Service:Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Place of Origin:Zhejiang, China
Brand Name:CBC
Wall:OSB board, gypsum board
Window:Aluminum frame
Door:Steel security door
Size:Customized size
Design Software:FrameCad
Life time:70 years
Advantages
Artistic and comfortable:The interior decoration is per your wish. And the air quality is good.
Fire resistance:All the materials used can be fire resistance.
Snow resistance:Max. 2.9KN/m2as required
High acoustic insulation:60db of exterior wall 40db of interior wall
Suitable for extreme climate, can endure 9 grade seismic, 12 grade hurricane, 1500mm snow load, 2.5h fire resistance
Moisture-proof and great ventilation design.
Long lifespan up to 50 years.
Dry construction and recycled building materials, environment-friendly.
Short construction period, saving up to 50% time period of construction.
Applications
Light steel living house;
Light steel apartment building;
Light steel affordable house;
Light steel luxury villa;
Light steel structure restaurant;
Light steel frame office building
Light steel frame hotel building;
Light steel frame school building;
Light steel structure hospital building;
Light steel structure vocational resort house;
Light steel prefab granny flat;
Light steel frame modular pod;
Other prefab light weight house;
Related Projects
Chile:
1- FRIOSAN cold storage—1600sqm American Style Steel Structure Shopping Mall with two floors office area, in-depended dining and access room
2- Reduccion casa
3- Casa Laguna Verde-156sqm two floors Modular Light Gauge Steel Prefab House
Austrian:
Polyfit workshop and office building—in total around 2000sqm, combine steel structure, light gauge steel frame and second-hand shipping containers;
Philippines:
SCPA workshop-3200sqm with Two Floor Flat Pack Container Homes inside
SG Eco workshop-3600sqm warehouse with two floors office in 250sqm,
Iriga Factory,
BBL Camp—24 rooms accommodation camp with public services such as dining hall, gym room;
Maria De Sio Resort-320sqm
SMMCI Camp—1300sqm office building built by flatpack container house and 2600sqm warehouse
Mozambique:
Nakala Resort—32 units of light gauge steel house as a beach side resort;
Tonga: Tonga Power Plant—3600sqm
Reunion Island: ARC-18/19 House Project—240sqm Environmentally Friendly Steel Prefab Homes
Project Name | Perth Project |
Finished Time | Year 2015 |
Project Place | Perth AU |
Building Area | 268 Sq.m |
Project Description | Design and fabrication, one stop solution including all AU standard facilities. |
Project Name | Chile Project |
Finished Time | Year 2017 ongoing |
Project Place | South Chile |
Building Area | 1138 Sq.m |
Project Description | Ten units of Solar Power Equipped Steel Prefab House, five connected in one row, very good design and excellent insulation for local cold weather. |
Project Name | Moti Resorts Project |
Finished Time | Year 2013 July |
Project Place | Nacala Mozambique |
Building Area | 3793 S.qm with 48 resorts |
Project Description | Two-bedroom resorts in Nacala near the sea beach, one stop solution including installation. |
Project Name | Perth Project |
Finished Time | Year 2016 |
Project Place | Perth AU |
Building Area | 308 S.qm |
Project Description | Design and fabrication, one stop solution including all AU standard facilities. |
FAQ
Q. Who are you?
A. CBC is a top provider for customized building solutions based in Hangzhou city China.
Q: What can you do for me?
A. CBC provides one-stop building solutions for projects such as:
Steel structure warehouse;
Steel structure apartment;
Steel structure workshop;
Steel structure shopping mall;
Steel structure car-park;
Mining camp;
Construction site camp;
Temporary house;
Low-cost house;
Vocational house;
Luxury residential house;
Resort villa;
Refugee house;
Isolation room;
Tiny House Expandable Container Homes
Q: What's your supply capacity?
A: Annual production capacity details are as follows:
Container house: 7200sets
Prefab house; 564000 square meters
Steel structure: 360000 square meters.
Q: What’s the process to start the cooperation?
A: To let us know your requirements or to send the designs;
Confirm our customized design for you based on above requirements;
Confirm the quotation based on our customized designs;
Arrange the down payment;
Confirm the shop drawings and make clear how we can fulfill your requirement;
Pass the inspection after around 30 days of production;
Arrange the balance payment;
Receive and study the installation instructions;
Receive the materials;
Finish the installation following our instructions and on-line engineering support;
Use our BIM system for a lifetime after sales maintenance service;
Appricate your recommendation or re-order;
Q: How do you guarantee the quality of the Environmentally Friendly Steel Prefab Homes?
A: Quality is the future. Quality is the top priority.
We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.
We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
