CBC Light Steel Villa Project In Australia

CBC Light Steel Villa Project Report - Wadalba Duplex, Australia



1. Project Overview

This presents the detailed information, structural configuration, product characteristics and overseas market application prospects of the Wadalba Duplex Light Steel Villa Project located in Wadalba, Australia. The project adopts a back-to-back mirror townhouse duplex design, featuring standardized prefabricated light steel structure construction, strict Australian local building code compliance, and high-performance thermal insulation and waterproof building materials. As a typical exported prefabricated residential project of CBC light steel villa products, this case fully demonstrates the superior adaptability, durability and economical efficiency of CBC light steel building systems in Oceania and South American markets, and provides a practical reference for the large-scale promotion of CBC products in Australia, Papua New Guinea, Chile, Tonga, New Caledonia and other regions.

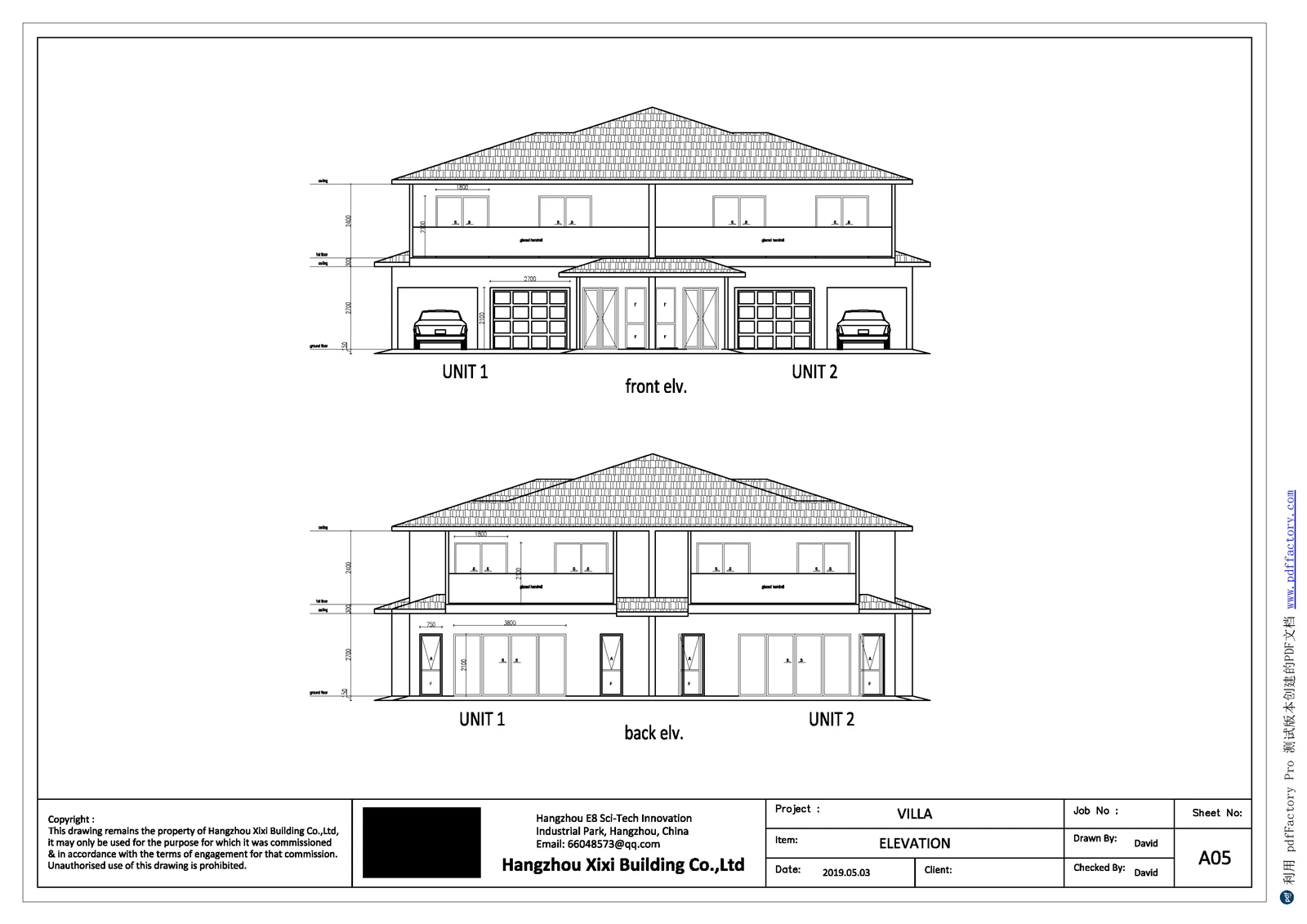

The Wadalba Duplex project is a two-story double-family mirror residential building with overall dimensions of 16.46 meters in width, 17.95 meters in length and a total height of 5.4 meters. The whole building adopts a modular integrated construction mode with G550-AZ150 high-strength galvanized light steel keel as the main structural frame, matching high-performance ALC exterior wall panels, OSB boards, thermal insulation cotton, cement fiber boards and other professional building materials. All design and construction indicators meet local Australian residential construction standards, energy-saving specifications and fire protection requirements. The project is fully prefabricated in the factory and transported to the site in 40-foot high cube containers, realizing efficient, environmentally friendly and low-carbon residential construction.





2. Detailed Project Information

2.1 Basic Project Parameters

Project Location: Wadalba, Australia

Building Type: Two-story back-to-back mirror duplex townhouse

Overall Dimensions: Width 16.46m × Length 17.95m × Total height 5.4m

Structural System: G550-AZ150 high-strength light gauge steel truss system

Transportation Mode: Fully prefabricated, delivered by 5 sets of 40-foot high cube containers



2.2 Functional Space Layout (Double-family Symmetrical Design)

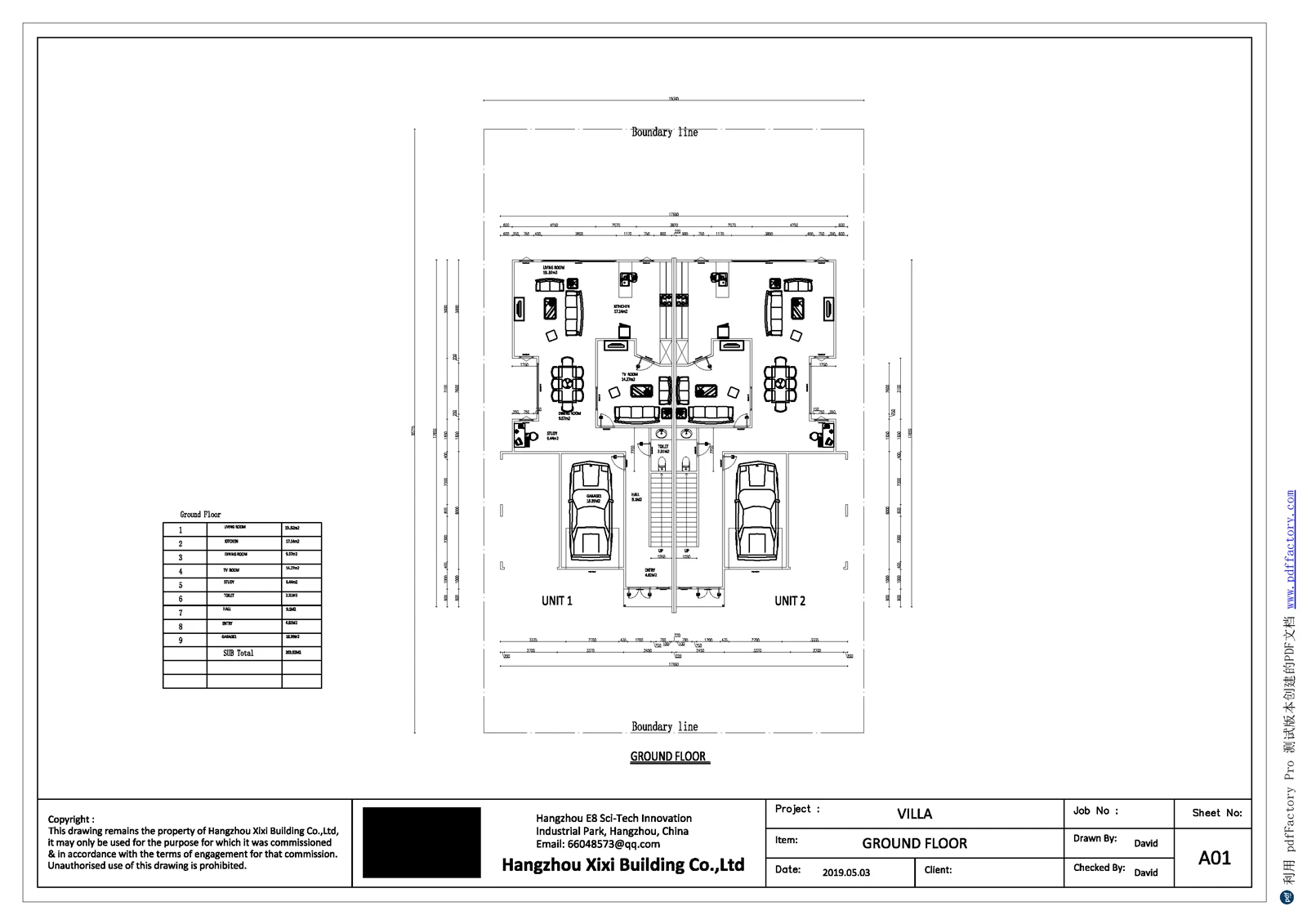

2.2.1 First Floor Space Configuration

The first floor focuses on living and public functional areas, with reasonable space division and high practicality, covering parking, catering, daily leisure and sanitary functions, and equipped with independent passage and foyer space to meet daily living needs:

Parking Garage: 18.5 ㎡

Kitchen: 17 ㎡

Living Room: 20 ㎡

Dining Room: 10 ㎡

TV Room: 14 ㎡

Toilet: 2.3 ㎡

Public passages, foyers and other auxiliary spaces: 21 ㎡



2.2.2 Second Floor Space Configuration

The second floor is dominated by private rest functional areas, adopting a multi-suite independent design, matched with laundry and public passage spaces, which fully meets the comfortable living needs of families and realizes the separation of dynamic and static residential spaces:

Four independent suites: 20 ㎡, 18 ㎡, 19 ㎡, 21 ㎡ respectively

Laundry Room: 4 ㎡

Public passages and shared areas: 17 ㎡

All the above functional spaces adopt a back-to-back mirror symmetrical design for two households, with consistent space size, structural configuration and functional layout, realizing standardized and unified construction and convenient later maintenance.

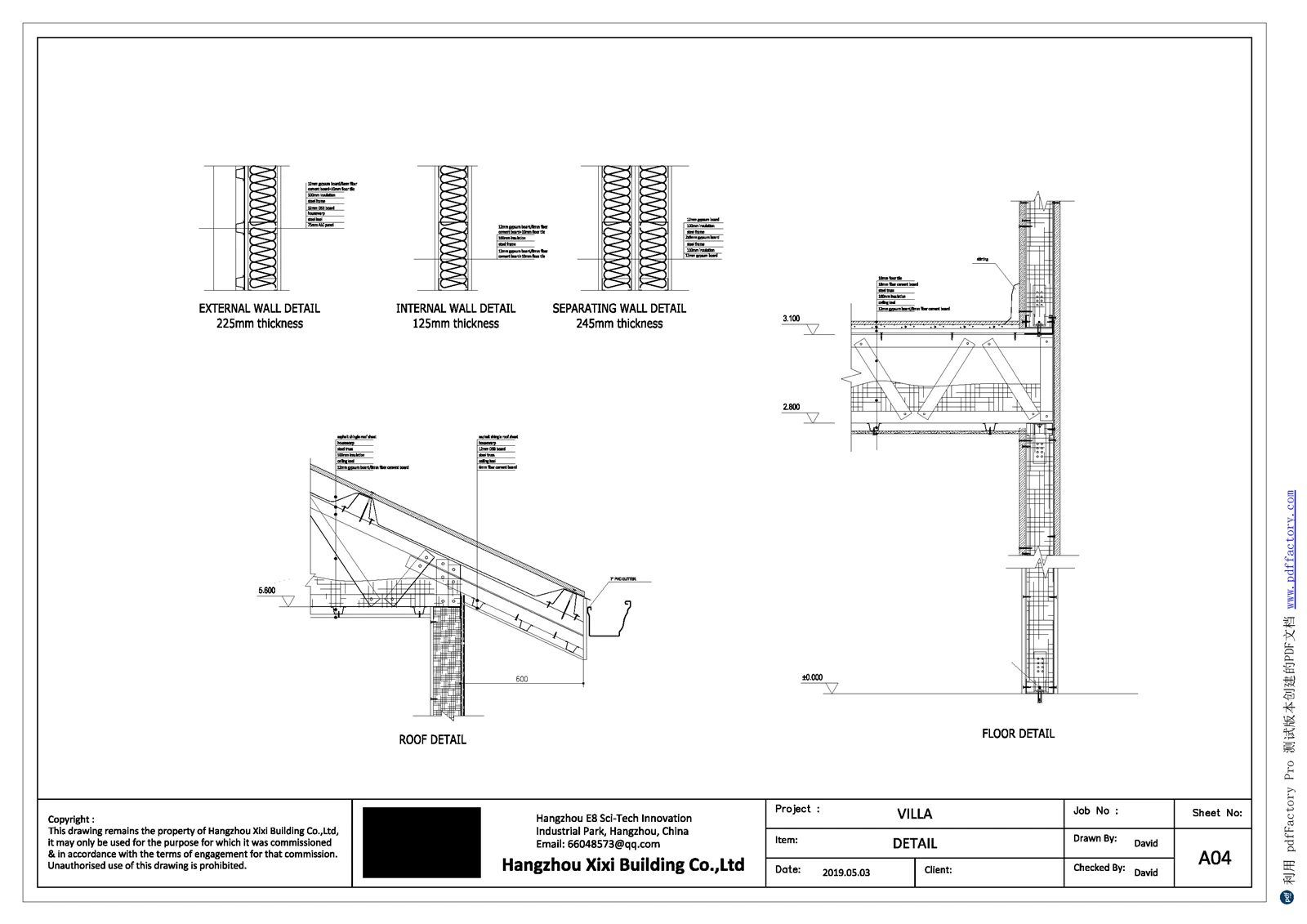

2.3 Building Material & Structural Configuration Standards

2.3.1 Exterior Wall System

The exterior wall adopts a multi-layer composite thermal insulation and weather-resistant structure, with super strong thermal insulation, fire resistance and weather resistance, adapting to the Australian coastal climate characteristics:

75mm ALC board + 12mm OSB board + 75mm C-type G550-AZ150 light steel keel (filled with 100mm glass thermal insulation cotton) + 12mm gypsum board interior wall. The multi-layer composite structure effectively isolates external temperature changes, reduces building energy consumption, and meets Australian NatHERS energy efficiency rating standards.



2.3.2 Interior Wall System

The interior wall adopts a lightweight and sound insulation optimized structure, with stable structure and excellent sound insulation effect:

Double-sided 12mm gypsum board + 5mm C-type G550-AZ150 light steel keel middle layer (filled with 100mm glass thermal insulation cotton). For wet areas such as toilets, the gypsum board is replaced with 8mm cement fiber board to enhance waterproof, moisture-proof and corrosion-resistant performance.



2.3.3 Roof System

The roof adopts a professional waterproof and thermal insulation integrated structure, which is wind-resistant, rain-proof and durable, adapting to complex outdoor weather conditions:

Asphalt shingle roof + 12mm OSB board + G550-AZ150 light steel roof truss + 12mm gypsum board ceiling. The overall structure has good waterproof, heat insulation and wind resistance, and meets local building wind load and rainwater resistance standards in Australia.



2.3.4 Floor System

The floor structure is sturdy and stable, with strong load-bearing capacity and durable surface decoration:

18mm cement fiber board floor base + 10mm thick ceramic tile surface layer, supported by G550-AZ150 light steel truss floor beam, with 100mm thick thermal insulation cotton filled inside the beam body to realize floor thermal insulation and sound insulation functions.





2.4 Overall Material Consumption & Supporting Facilities

The project adopts full standardized material matching, with accurate material consumption and complete supporting facilities, realizing integrated finished delivery:

Light steel keel: 2.8 tons (G550-AZ150 high-strength galvanized steel, anti-corrosion and anti-rust)

ALC exterior wall panel: 650 ㎡

OSB board: 1100 ㎡

Floor ceramic tile: 540 ㎡

Glass thermal insulation cotton: 1800 ㎡

Gypsum board: 2000 ㎡

Cement fiber board: 450 ㎡ (used for wet areas and floor base)

Roof asphalt shingle: 450 ㎡

Doors: 28 sets in total

Glass doors and windows: 90 ㎡

Sanitary ware: 10 toilets, 6 shower rooms, 12 hand basins, 2 bathtubs

Kitchen cabinet and complete supporting facilities: 2 sets (double household matching)





3. Core Characteristics of CBC Light Steel Villa Project

3.1 High-strength & Durable Structural Performance

All structural keels of the project adopt G550-AZ150 high-strength light steel materials, which have excellent anti-corrosion, anti-rust, anti-termite and seismic performance. Compared with traditional wood and brick-concrete structures, CBC light steel structures have stable mechanical properties, no deformation, no cracking, and a service life of more than 70 years. The overall truss structure is scientifically designed, which can adapt to the wind load(upto 270~300KpH), seismic load(upto 8~9 degrees) and other environmental load requirements of Australian coastal areas, and fully comply with the Australian National Construction Code (NCC) and CodeMark certification standards.



3.2 Excellent Energy-saving & Environmental Protection Performance

The whole building adopts multi-layer thermal insulation structure with 100mm high-density glass thermal insulation cotton filled in walls, floors and roofs, which effectively reduces indoor and outdoor heat exchange, significantly reduces air conditioning and heating energy consumption, and meets the high-standard energy-saving and emission reduction requirements of Australian residential buildings. All building materials are environmentally friendly and pollution-free, with high recyclability of light steel materials, low construction carbon emissions, and no construction waste on the construction site, conforming to the global green building and low-carbon development trend.



3.3 Modular Prefabrication & Efficient Construction

CBC light steel villas adopt full factory prefabricated production and on-site assembly construction mode. All structural components and building modules are precisely processed in the factory, realizing standardized and customized production. Compared with traditional buildings with a construction cycle of more than 9 months, the prefabricated construction mode greatly shortens the project cycle(70% less), solves the problem of shortage of local construction labor and high labor costs(50~60% less) in Australia, and significantly improves construction efficiency and project delivery speed.



3.4 Customized & Humanized Space Design

The duplex mirror townhouse design adopted by the project is highly in line with the mainstream residential demand of Australian families. The functional space is reasonably divided, realizing the separation of dynamic and static, with complete public living areas and private rest areas. At the same time, targeted material replacement is carried out for wet areas such as toilets, adopting cement fiber boards with better waterproof and moisture-proof performance to avoid mildew and corrosion in humid environments, which is highly adaptable to the local living habits and climatic characteristics of Oceania.



3.5 Convenient Transportation & Low Comprehensive Cost

The modular integrated design is convenient for containerized centralized transportation. The whole project only needs 5 40-foot high cube containers to complete the full material and component delivery, which reduces transportation costs and loss rates. In addition, the light steel structure has low later maintenance cost, strong structural stability, and avoids the problems of wall cracking, water seepage and termite erosion of traditional buildings, with outstanding comprehensive economic benefits.





4. Market Application & Development Prospect of CBC Light Steel Products

4.1 Australian Market

Australia is one of the most mature and standardized markets for light steel prefabricated buildings. At present, Australia is facing a severe housing supply shortage, with a housing gap of 260,000 units, and the traditional construction industry is restricted by insufficient skilled labor and high labor costs, which promotes the rapid development of prefabricated light steel buildings. In addition, the Australian building code clearly requires that new residential buildings in high-risk bushfire areas must adopt non-combustible frame materials, which makes light steel structures the preferred choice for local new residential construction.

CBC light steel villas have been widely applied in the Australian market with their superior fire resistance, seismic resistance, energy saving and environmental protection performance. The products(main frame designed & produced by FrameCAD system which is from NZ) fully comply with Australian NCC building specifications, NatHERS energy efficiency rating and CodeMark certification requirements, and are suitable for urban duplex residences, suburban villas, tourist resort residences and other scenarios. The Australian light gauge steel framing market is expected to reach USD 2.5 billion by 2033 with a compound annual growth rate of 5.4%, and CBC products have broad market growth space in the Australian high-standard residential construction field, we have also finished prjects in Perth and Bristban.



4.2 Papua New Guinea Market

Papua New Guinea is located in the Oceania seismic belt, with frequent seismic activities, humid and rainy tropical climate, and severe termite erosion problems. Traditional wooden buildings are easy to be corroded and damaged, and brick-concrete buildings have high construction costs and slow progress. CBC light steel structures have excellent seismic resistance, termite resistance, moisture resistance and corrosion resistance, which can perfectly adapt to the local harsh natural environment.

At the same time, Papua New Guinea has a strong demand for affordable residential construction and infrastructure construction. CBC modular prefabricated light steel buildings have the advantages of fast construction speed, low cost and easy transportation, which can quickly meet the local residential renewal and new construction needs. With the continuous advancement of local urbanization and infrastructure upgrading, CBC light steel villas will become the mainstream choice for local residential and public building construction, with huge market potential.



4.3 Chilean Market

Chile is located in the South American seismic zone, with frequent earthquakes and diverse regional climates. The coastal areas are humid and rainy, and the inland areas have large temperature differences. Local agricultural buildings, residential buildings and tourism supporting buildings have strong demand for seismic resistance, durability and low maintenance costs. Traditional wooden structures are prone to deformation and corrosion, while concrete structures have long construction cycles and high costs.

CBC G550 high-strength light steel structure products have super seismic performance and weather resistance, which can adapt to Chile's complex climatic and geological conditions. In recent years, light steel frame buildings have become the mainstream choice for Chilean agricultural construction and residential renovation. CBC light steel villas, with standardized production and modular assembly advantages, can meet the local needs of affordable housing, rural residential renovation and tourism supporting construction, and the market penetration rate is increasing year by year.

CBC have finished house project in Santiago and Puerto Natales.





4.4 Tonga Market

Tonga is an island country in Oceania, with typical tropical marine climate, strong wind, high humidity and frequent tropical cyclones. Local buildings need to have excellent wind resistance, waterproof and moisture-proof performance. Affected by the small land area and scarce building materials of the island country, traditional building construction is difficult and costly.

CBC light steel villa products adopt high-strength light steel truss structure with strong wind resistance and structural stability. The fully prefabricated modular design solves the problem of difficult transportation of island building materials. At the same time, the multi-layer composite waterproof and thermal insulation structure adapts to the local high humidity and strong wind climate. It is widely used in Tonga's residential construction, resort development and post-disaster reconstruction projects, and has become a reliable building product for local island construction.

CBC projects in Tonga noramlly will combine with customized H beams as main bearing frame, with light gauge steel frame for wall and roof.



4.5 New Caledonia Market

New Caledonia has a superior tourism resource endowment, and the local market has a strong demand for high-quality residential buildings, vacation villas and tourism supporting facilities. The local construction standards are in line with Australian specifications, with high requirements for building energy saving, environmental protection and safety performance.

CBC light steel villas fully meet the local high-standard construction specifications, with beautiful appearance, flexible space design, excellent energy-saving effect and high living comfort. The products are suitable for high-end residential villas, tourism vacation apartments and other high-quality construction projects. With the continuous development of local tourism economy and the upgrading of residential consumption, CBC light steel prefabricated buildings will usher in a rapid growth period in the New Caledonia market.



5. Overall Market Development Prospect Summary

In the context of global urbanization acceleration, low-carbon environmental protection development and post-disaster infrastructure reconstruction, prefabricated light steel buildings have become the mainstream trend of the global construction industry. CBC light steel villa products rely on high-strength structural performance, standardized modular production, efficient construction mode and diversified scene adaptation capabilities, forming obvious competitive advantages in Oceania and South American markets.

For high-standard mature markets such as Australia and New Caledonia, CBC products meet local strict building certification and energy-saving standards, and can continuously expand high-end residential and commercial supporting construction markets; for emerging markets such as Papua New Guinea, Tonga and Chile, CBC light steel buildings solve the pain points of local difficult construction, high cost and poor building durability, and have broad popularization space in affordable housing, rural reconstruction, tourism supporting and post-disaster reconstruction projects.

In the future, with the continuous optimization of CBC product technology, further improvement of standardized system and continuous enrichment of customized design schemes, CBC light steel villa products will further increase market share in Oceania and South America, and gradually build a global high-quality prefabricated light steel building brand with reliable quality, efficient delivery and professional service.
