40ft Flat Pack Container

40ft Flat Pack Container is combined by two units of standard 20ft flat pack container house. we will have all bolts and connection plates to join them together, will have T shape rubber for water proof, will have steel flashing cover and joint floor plate to decorate the jointments.



Size	Length	6058mm / 6000mm or customized
	Width	2438mm /3000mm or customized
	Height	2600mm / 2791mm / 3000mm or customized
	Clear height indoor	5800mm*2200mm*2300mm, or custom-made dimensions for special projects
Standard Materials	Roof System	Roof structure made by 2.5~3mm thick Q355 galvanized steel, cold rolled special sections, high strength + 70mm thick integrated PU foam insulation + embedded electrical system
		Roof loading:>1.0KN/m2, can walk on the roof directly
	Base System	Q355 galvanized steel structure chassis (2.5~3mm thickness) + 18mm cement-fiber board + 2mm PVC floor sheet (glass wool insulation for optional)
		Floor loading:>2.5KN/m2
	Wall System	T=50/75/100mm EPS / rock wool / glass fiber / PU sandwich panel, 0.4mm color-bond steel on both sides
	Door System	Steel door / Fire-proof door / Sandwich panel door
	Window System	Aluminum alloy or PVC window, single or double glass
	Floor System	PVC, plywood or customized
Option	Drainage system	Full embedded in factory, can be customized
	Electric system	Pre-installed in factory, can be customized
Technical Parameter	Suitable temperature	-40ºC to 40ºC
	Wind resistance	210km/h
	Seismic resistance	Grade 8





Advantages

Frame: Q355 steel structure is galvanized and completly welded, coated with electrostatic powder sparying in 100um. Q355 Steel is better than Q235, and with perfect treatment so it would keep the frame in high anti-corrosion, the lifetime of the container frames is 15~20 years.

Roof: For the roof, we inject PU foam (45kg/m3 which meets standard of PIR) which makes the container roof in high integrity for the airtightness, it's much better than common EPS sandwich panel or glass wool as roof insulation.

Wall: For the sandwich panels, the steel sheet on both sides are with treatments of Aluminum zinc magnesium AMZ galvanized 100g/m² plus PE baking finish in 20/5um. which can last more than 20 years.



The 40ft Flat Pack Container is a versatile and cost-effective solution for a range of applications. Its design is based on the standard ISO shipping container, but it can be disassembled and assembled quickly and easily, making it ideal for use in temporary or remote locations. Here are some of the key features of this container:



1. Durable Construction

The 40ft Flat Pack Container is constructed from high-quality steel, which makes it strong and durable. It can withstand harsh weather conditions, extreme temperatures, and heavy loads, making it ideal for use in a wide range of environments. The container is also rust-resistant, which ensures that it will maintain its structural integrity over time.



2. Easy Assembly and Disassembly

The Flat Pack Container can be assembled and disassembled quickly and easily, without the need for specialized tools or equipment. This makes it ideal for use in remote or temporary locations where access to heavy machinery may be limited. The container can be assembled by two people in just a few hours, which saves valuable time and money.



3. Customizable Design

The 40ft Flat Pack Container can be customized to meet a wide range of requirements. It can be modified to include windows, doors, and ventilation systems, as well as insulation and electrical wiring. This makes it ideal for use as a workshop, office, or even a living space. The container's modular design also allows for easy expansion, so additional containers can be added as needed.



4. Portable and Transportable

The Flat Pack Container is designed to be portable and transportable. When disassembled, it can be packed into a relatively small space, which makes it easy to transport by truck, ship, or even helicopter. This makes it ideal for use in remote or hard-to-reach locations such as construction sites, military bases, or disaster relief areas.



5. Cost-effective

The 40ft Flat Pack Container is an affordable alternative to traditional building methods. Its modular design and ease of assembly mean that it can be installed quickly and easily, which saves time and reduces labor costs. Its durability also means that it requires minimal maintenance over its lifetime, which further lowers operating costs.



In conclusion, the 40ft Flat Pack Container is a highly versatile and cost-effective solution for a wide range of applications. Its durable construction, easy assembly and disassembly, customizable design, portability, and cost-effectiveness make it an ideal choice for businesses, government agencies, and individuals looking for an alternative to traditional building methods. Whether it is used as a temporary office, a workshop, or even a living space, the container provides a high level of flexibility and utility that is unmatched by other building options.





Related Projects



Indonesia:

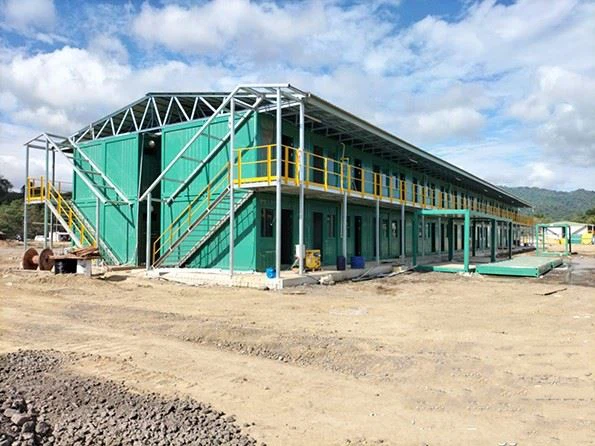

PT Merdeka accommodation camp-288 40ft Flat Pack Container with ensuite;

AMMAN accommodation camp-480 rooms with ensuite;



Chile:

FRIOSAN cold storage—1600sqm warehouse with two floors office area, in-depended dining and access room

Reduccion casa

Casa Laguna Verde-156sqm two floors house



Austrian:

Polyfit workshop and office building—in total around 2000sqm, combine steel structure, light gauge steel frame and second-hand shipping containers;



Philippines:

SCPA workshop-3200sqm with 40ft Flat Pack Container inside

SG Eco workshop-3600sqm warehouse with two floors office in 250sqm,

Iriga Factory,

BBL Camp—24 rooms accommodation camp with public services such as dining hall, gym room;

Maria De Sio Resort-320sqm

SMMCI Camp—1300sqm office building built by flatpack container house and 2600sqm warehouse



PNG:

PNG concrete Development—13 steel structure warehouse in around 1500sqm each;



Virgin Island: 10000sqm Distribution center



New Caledonia:

Alain's warehouse-five floors warehouse building with cargo lift, in total 1750sqm

Le Tigre Warehouse—three floors warehouse with ramp, total 3700sqm



Mozambique:

Nakala Resort—32 units of light gauge steel house as a beach side resort;



Tonga: Tonga Power Plant—3600sqm



Reunion Island: ARC-18/19 House Project—240sqm
