20FT Flat Pack Container House

Introduction:



The 20FT Flat Pack Container House has become a valuable solution for the building and mining industry due to its increasingly affordable prices, easy installation, and customization options. This versatile and flexible unit is ideal for a wide range of construction and mining projects, from temporary housing to permanent structures to equipment storage units.



One of the primary advantages of the 20FT Flat Pack Container House is its modular design, which allows the user to customize the units to meet their specific needs. This flexibility ensures that the unit can be used in a variety of environments, from remote mining sites to urban construction sites. The flexibility of the Flat Pack Container House means that it can be used in different configurations, from stand-alone structures to multi-story buildings. This is particularly useful in the mining industry, where the structure can be moved, assembled and disassembled quickly and easily, making it a perfect solution for temporary worker accommodations.



Moreover, the 20FT Flat Pack Container House is becoming more and more affordable, thanks to advancements in production technology and the increasing popularity of prefabricated homes. This affordability means that both small-scale and large-scale construction projects can benefit from this housing solution, enabling site owners to allocate their budget more efficiently and effectively.



Additionally, the 20FT Flat Pack Container House is incredibly easy to install, requiring only basic tools and skills to assemble. This ease of installation means that the project owner can save time and money on labor costs and can move the units to different locations as needed. The container homes can be used as structural components or complete living units.



The 20FT Flat Pack Container House can also be fitted with a wide range of features and accessories to make it more comfortable and functional. This includes heating, plumbing, and electrical systems, insulation, windows, doors, and even customizable interiors. With these customization options, the container home can be tailor-made to meet the site owner's needs, providing them with an efficient and sustainable living solution.



Furthermore, the 20FT Flat Pack Container House is an eco-friendly housing solution that has a minimal environmental impact. The use of recycled steel reduces the amount of waste generated, and the containers can be reused multiple times. Additionally, with proper insulation and ventilation, the flat pack container homes can be very energy-efficient, saving both energy and money on heating and cooling costs.



The durability of the 20FT Flat Pack Container House also offers significant benefits for construction and mining industries. The sturdy steel containers are capable of withstanding harsh environments, extreme weather conditions, and heavy loads, ensuring that the housing units remain safe and secure. This provides owners with peace of mind, knowing that their workers or the equipment will be protected within these sturdy structures.



With all these benefits in mind, the 20FT Flat Pack Container House has become an increasingly popular housing option for both the construction and mining industries. It is not only cost-effective and environmentally sustainable, but also flexible for different needs. As a result, it has become a valuable solution for addressing the need for secure and reliable housing in remote areas for workers or storage for equipment.



Specifications

Wall panel

Insulation materials: EPS(in 10~16kg/cbm density), PU(in 40kg/cbm density) or rockwool(in 80~120kg/cbm density);

Thickness: 50mm, 75mm or 100mm;

Steel plate thickness: 0.35~0.6mm;

Color options: white, blue, red, green, yellow;

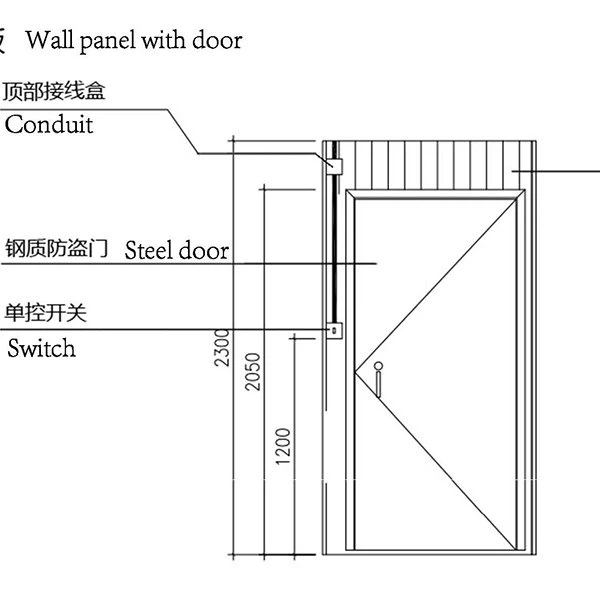

We have standard wall panel and wall panel with door or window, specifications as below instructions:

All windows or doors are well prefabricated in our factory, all wall panels are in the same dimension so you have the flexibility to re-schedule the positions for door and window.

Frame system

CBC 20FT Flat Pack Container House use Q345 galvinazed steel for the main frames. both roof and chaiss frames are full welded in a operating platform to make all members are in the correct position.

The electrial conduits are presetted into the roof frame cause we will inject PU foam into the roof and make it to be an integrated whole piece. this roof are patented and we are the only one to provide it with perfect tightness and strengh.



We use well galvanized high strength steel plate in 6mm thickness to make the container corner parts, all specifications following ISO standards so we can use them to lift and move the container house after well installed.

The thickness of the four posts are in 2.3~3mm depending on the detailed loading requirements. if we are going to build in mutiple floors, we'd better to use thicker posts cause they will bearing the loadings.



Full specifications of the 20FT Flat Pack Container House

1) Steel beams and columns: thickness from 2.3~4mm,

treatment: galvanized and coated two layers anti-corrosive paint;

2) Wall panel: thickness options 50mm, 75mm or 100mm;

Insulation options are EPS, PU and Rockwool;

3) Roof system: PU injected integrated roof with electrical system embedded,

Ceiling: color steel plate;

4) Floor: Fiber cement board in 18mm and PVC flooring, all finished in factory;

5) Window: sizes are 800*1100mm for living room and 800*400mm for bathroom, in PVC or Alu.. fames;

6) Door: size is 900*2050mm steel security door, inner door will be alu. folding door or sandwich panel door.





We have the highest quality standard for the 20FT Flat Pack Container House from the design to materials and production till installation:

Design: we chose PU injection for the roof insulation system, which has much better performance in tightness, strength and insulation. this system is patented in China. what's more, our container home is designed for 1KN/sqm roof live load and 2.5KN/sqm floor load, wind resistance can reach to 210km/H;

Materials: we use Q355 galvanized steel cold rolled for the main frame, all frames are full welded together then well-polished and painted in our automatically painting platform, which will be much better than by manual. the steel sheets on both side of the sandwich wall panels are with aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um treatments, lifetime can reach to 15~20 years.

Production: most of the cutting, drilling, welding and painting are by machines or auto-arms, much better in accuracy and more guarantee for the quality;

Installation: we have SOC packing which will be much easier for materials sort out onsite, less problem for installation and also time saving. we have very detail installation instructions and videos to guide the onsite work, make sure every project can be handled over perfectly.





Packing and transportation

We have two methods for packing the 20FT Flat Pack Container House: flat packing or SOC packing.

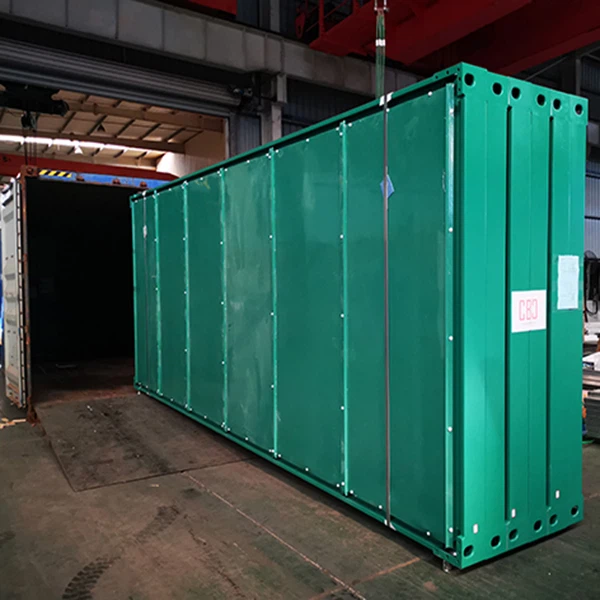

We will pack the container roof and base together, and use steel rack to pack and protect the sandwich wall panels and other accessories. Or we will use the container roof and base to make a self-owned-container box, put all sandwich wall panels and other components into the box, so one unit is a box, very easy to sort out the materials onsite and no items will be missed.

Flat packing

SOC packing



Flatpack Packages onsite



Applications

Construction site office or accommodation camp: fast installation and can be easily relocated after the project finished, very convenient for construction companies and can also save a lot of cost.

Mining site office or accommodation camp: easy to handle in the remote mining areas, lifetime can reach to 15~20 years. because other than the galvanized steel frames, the steel sheet for the sandwich wall panel is aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um.

Less concrete foundation requirements to protect the land and save construction cost, Also, can withstand in heavy wind and highly corrosive conditions.

Isolation rooms: massive production capability and fast installation made the 20FT Flat Pack Container House to be the perfect solution during the pandemic. It can be re-located and re-used after wise to recover part of the investment, simple requirements for foundation also can protect the land and save the construction cost.

Temporary office or living house: ready to move in, easy to erect, convenient to relocated, affordable for temporary use.

Low-cost house: affordable cost vs. 15~20 years lifetime makes the flatpack to be the most competitive solution for low-cost housing projects. What’s more, it can be built in a short time and massive production is available.

Granny backyard flat: ready to move in, easy to erect, convenient to relocated, affordable for temporary use.

Related Projects



	Project Name	Camp in Lao
	Finished Time	Year 2019
	Project Place	Lao
	Building Area	56 units
	Project Description	Accommodation and office blocks made of 20FT Flat Pack Container House, most are two floors. Meets with AU standards.
	Project Name	MTI Accommodation Camp
	Finished Time	Year 2022
	Project Place	Indonesia
	Building Area	288 rooms with ensuite in three floor, 8 buildings
	Project Description	8 Staff accommodation buildings for PT. Merdeka Copper Gold. Each block in three floors, 12 rooms with ensuites in every floor, 36 rooms combine into one block. CBC designs, provides all materials, accessories, facilities within two months.
	Project Name	AMMAN Accommodation Camp
	Finished Time	Year 2022
	Project Place	Indonesia
	Building Area	480 rooms with ensuite
	Project Description	6 Staff accommodation buildings for AMMAN. Each block in two floors, 40 rooms with ensuites in every floor, 80 rooms combine into one block. CBC designs, provides all materials, accessories, facilities. All pods customized for our client.
