Modern Expandable Container Homes



Modern Expandable Container Homes is the luxury version of the expandable cubic, it can be expanded also, but we made it in different layout, with different structure system, different wall and roof system, also with better outside and inside finishing.

We use high strength aluminum frame with PU foam to make the roof and wall panels in order to achieve better insulation and good strength but in lighter weight pieces. The PU foaming system is solid, with well finished plaster board on both sides for walls which requires no more treatment after been finished. The water pipes, electrical conduits and wires are also pre-installed and ready to use after been connected.

All doors, windows, sanitary, lights, flooring and ceiling are well installed, client just need to open the package and fix some connections, the smart cubic is ready to move in.





Designs

We have three basic designs of the Modern Expandable Container Homes, from one bedroom to three bedrooms:

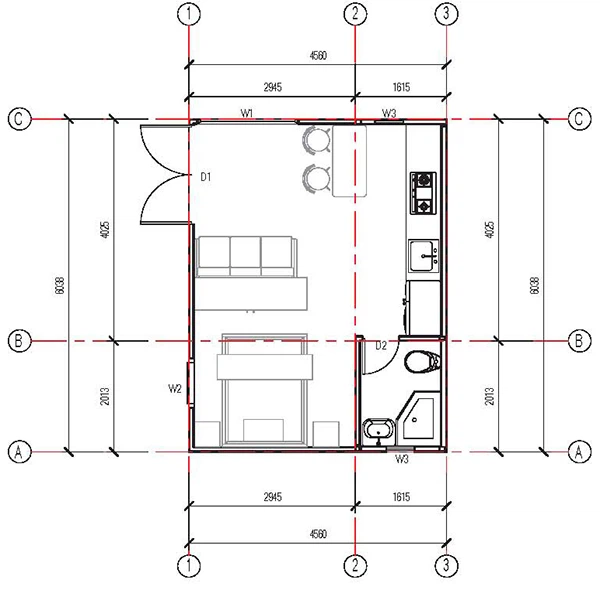

One bedroom with small living and kitchen area, plus a bathroom in total 27㎡.

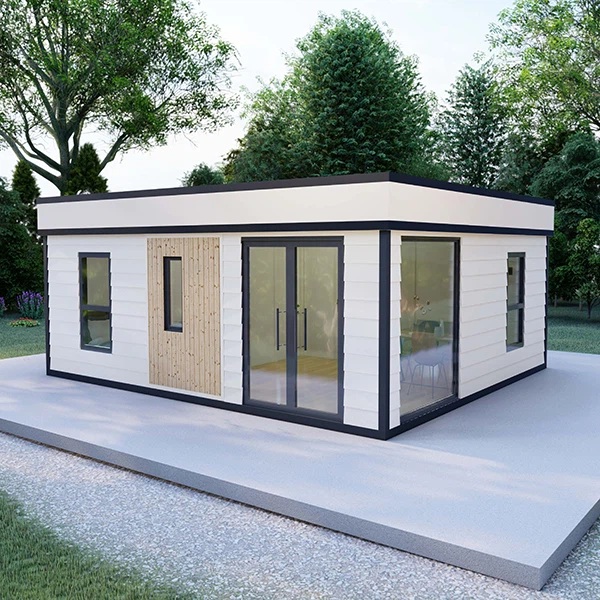

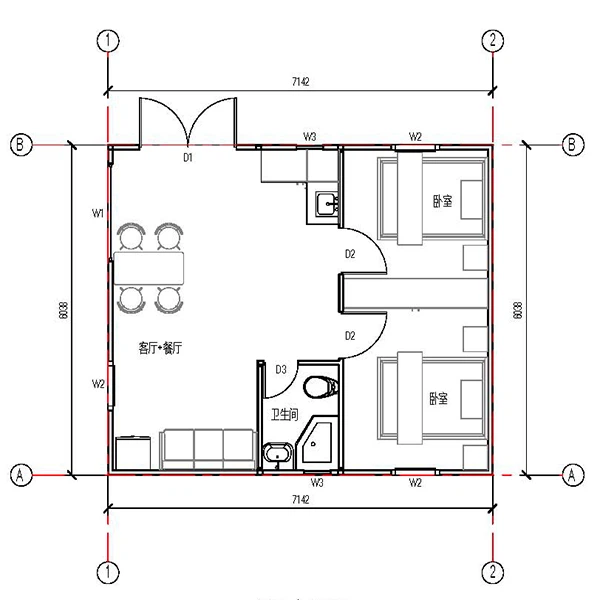

Two bedrooms with standard living and kitchen area, plus a bathroom in total 43㎡.

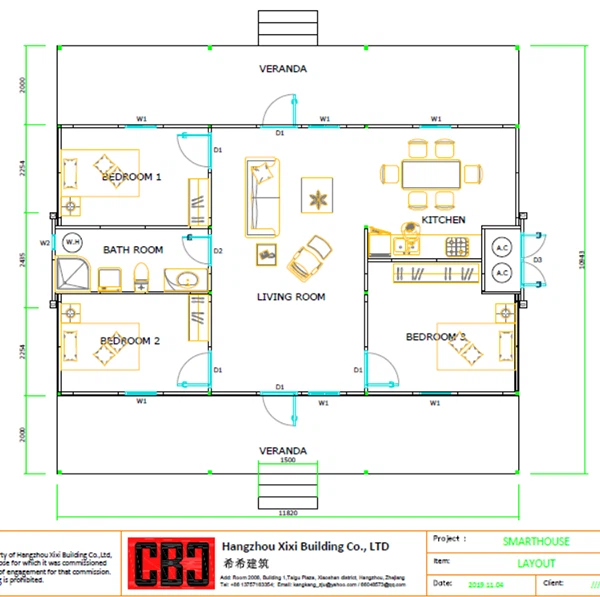

Three bedrooms with luxury living, dining and kitchen area, plus a big bathroom in total 82㎡. Front and back side large balconies are optional.

We can also customize for special projects, but in order to load into shipping container and convenient for transportation, the overall length will be no longer than 12m, and the expandable parts should be designed to be foldable.

Specifications

Main Structure of our Modern Expandable Container Homes: made by full-welded oil-free galvanized RHS, Q355 low-carbon steel cold formed sections with painting finishing.

Aluminum wall frame: the wall frame is made by 6063 reinforced aluminum alloy profiles;

Aluminum alloy hinge: 6063 reinforced aluminum alloy custom made hinge body and Q355 steel hinge base;

Wall specifications: prefabricated wall panel, well finished by 6.5mm bamboo fiber internal wall cladding, hot rolled reinforced triangle trusses inside to bear the loading, expansion polyurethane foam in 55kg/m³ for wall insulation, 27mm embossed steel cladding with PU insulation as external wall finishing add extra insulation, the main outer frame of the wall will be aluminum alloy profile.

Wall section details

Ready-made external wall panels

Floor system: Q355 RHS main frame and aluminum alloy 6063 high strength inside frames with PU foam insulation inside, with 5mm SPC flooring finishing.





Roof system: Q355 high strength RHS frames with 55kg/m³ PU foam insulation, interior with 6.5mm bamboo fiber board finishing.

Bathroom and kitchen finishing: high standard wash basin, toilet, shower room, mirror, water heater, kitchen units are well pre-installed and fixed, safe during transportation and ready to use, electrical and plumbing systems are also embedded and well finished, no more installation work onsite except to connect them.

Packing and transportation

The smart Modern Expandable Container Homes can be folded during transportation, which makes it cost saving. We can fold the two side parts into the main center part, make it a 20ft or 40ft SOC box, put other components inside the SOC box then load into shipping container. In this way, each SOC box is one unit of smart house, so you can find all components easily onsite. Or if any delay of the project, you can also put the SOC box in warehouse or in the site, there will be no mess up or damage, no accessory will get lost either.



Advantages





Modern Expandable Container Homes

Modern Expandable Container Homes are a revolutionary product that is changing the way people think about home building. These homes are made from shipping containers that are repurposed and redesigned to suit the needs of modern living. The containers are easy to transport and assemble, making these homes an ideal solution for people living in remote areas or those who want to minimize their environmental impact.



One of the main features of these homes is their expandability. Unlike traditional homes, which are built on fixed foundations, Modern Expandable Container Homes can be easily expanded to accommodate growing families or changing needs. The containers are designed to be modular, which means that they can be stacked and attached together to create larger living spaces. This means that these homes can be customized to fit the needs of any family, no matter how large or small.



Another key feature of Modern Expandable Container Homes is their affordability. These homes are much cheaper to build and maintain than traditional homes. Shipping containers are readily available and can be purchased at a fraction of the cost of building materials for traditional homes. Additionally, the modular design of these homes allows for easy and cost-effective repairs and upgrades.



The design of these homes is also a major selling point. The sleek, modern aesthetic of Modern Expandable Container Homes is perfect for people who value design and aesthetics. These homes can be customized to fit any style or taste, from traditional to contemporary. Additionally, the use of natural materials such as wood and steel gives these homes a warm and inviting feel.



One of the main benefits of Modern Expandable Container Homes is their sustainability. These homes are much more environmentally friendly than traditional homes. Shipping containers are repurposed, which means that they are not being thrown into landfills. They also require less energy and resources to build and maintain than traditional homes. Additionally, because these homes are expandable and modular, they can be designed to be energy-efficient and to utilize green technologies such as solar panels and rainwater harvesting systems.



Finally, these homes are incredibly versatile. They can be used as permanent residences, vacation homes, or as rental properties. They can also be used for a variety of other purposes such as offices, studios, or even as emergency housing in the wake of natural disasters.

Overall, Modern Expandable Container Homes offer a wide range of benefits and advantages over traditional homes. They are affordable, sustainable, customizable, and versatile. They are perfect for anyone who values design, affordability, and sustainability, and who wants a home that can adapt to their changing needs.





Applications

Our Modern Expandable Container Homes are widely used for projects such as:

1) For vocational house;

2) For tiny backyard house;

3) For mining site or construction site accommodation rooms;

4) For low-cost living homes;

5) For temporary home or temporary office;

6) For isolation room;

7) For classroom;

8) For refugee house;



Installation



Fast and easy assemble of the Modern Expandable Container Homes.

Usually, it will take 7-10 days to finish the assemble by 3-5 workers.

And we will offer the construction drawing to guide the installation, will also support online. It is very easy and fast.

1. Foundation

2. Lay down the chassis;

3. Erect the wall panels;

4. Connect the electrical and plumbing;

5. Install the doors and windows;

6. Install the flashing, skirting;

7. Finished





Related Projects

Project Name		Damien's house
Finished Time		Year 2017, Oct.
Project Place		Coron Philippines
Building Area		280 sq.m
Project Description		Two floors living house, basement used as a small workshop for Damien to repair the Speedboat. This house is inside the BBL resort.
Project Name		Raul's Appartment
Finished Time		Year 2019, Nov.
Project Place		Coron Philippines
Building Area		430 sq.m
Project Description		Design and provide all materials, provide installation instructions and online support, also have good construction partner there to handle the whole project very well.



Virgin Island: 10000sqm Distribution center



Mozambique:

Nakala Resort—32 units of light gauge steel house as a beach side resort;



Tonga: Tonga Power Plant—3600sqm



Reunion Island: ARC-18/19 House Project—240sqm
