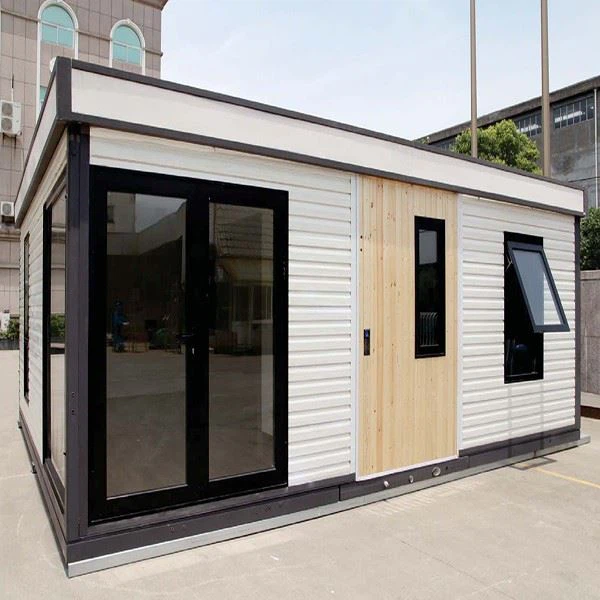

Easy To Install Expandable Container Homes
Main structure: fully-welded oil-free galvanized RHS, Q355 steel, yield strength 345MPa and with well painting finishing
External wall: 0.4mm steel sheet AZM100g/sqm plus harsh weather proof painting 18/5 um
Insulation: expansion Polyurethane foam 55kg/cbm
Interior: 6.5mm bamboo fiber board
Product Introduction
Name | Easy To Install Expandable Container Homes |
Main structure | fully-welded oil-free galvanized RHS, Q355 steel, yield strength 345MPa and with well painting finishing |
Alu. wall frame | Made of 6063 reinforced aluminum alloy. color options for wall cladding: white, frosted dark coffee |
Alu. alloy hinge | 6063 reinforced aluminum alloy, color: natural aluminum hinge base, Q355 steel |
External wall | 0.4mm steel sheet AZM100g/sqm plus harsh weather proof painting 18/5 um |
Insulation | expansion Polyurethane foam 55kg/cbm |
Interior | 6.5mm bamboo fiber board |
Max. Wind load | 200 km/h |
Earthquake | 8 grades |
Layouts
We have 28sqm(one bedroom with bathroom and kitchen) and 43sqm(two bedroom with bathroom and kitchen) layout, they are most popular for a simple low cost living.
Structural System
The steel frame is Q355 low-alloy carbon structural steel, wind load can reaches to 200km/h. snow loading is 0.5kn/sqm and floor loading is 2.0kn/sqm.
We have PU foam insulation for the whole house including in floor and roof system as well as in wall system, so the sound insulation value reaches to 60db.
Prefab expandable house floor system
Prefab expandable house roof system
Prefab expandable house wall system
Advantages
The frame system includes the integrated steel frame and the aluminum frame composited wall system. each structure has undergone industrialized design and precise calculation. equipped with digital production and processing techology. thus ensuring the product to have high structural strength and high stable performance.
The steel frame is Q355 low-alloy carbon structural steel, cold-formed, with high structural strength and lightweight. the aluminum frame is made of 6063-T5 reinforced aluminum alloy, which is extruded at high temperature and is of high strength, good toughness and great corrosion resistance. after proceessing, the surface is smooth and clearn, which is convenient for surface oxidation and coloring. also it has high color fastness.
The windows and door glass are made of hollow double glass. the two pieces of glass are bonded by butyl glue, and the outer edge is sealed with polysulfide glue to isolate the air from outside. thtat's why this prefab expandable house have better performance of heat insulation, sound insulation and heat preservation.
The interior floor is SPC flooring. it's more natural and environmentally friendly. the main material of the floor is natural stone powder without any radioactive elements, it's light and thin, which reduces the weight of the house.
Applications
1) For vocation house;
2) For granny flat;
3) For mining site or construction site accommodation rooms;
4) For low-cost living homes;
5) For temporary home or temporary office;
6) For isolation room;
7) For classroom;
8) For refugee house;
Installation
Fast and easy assemble of the Easy To Install Expandable Container Homes.
Usually, it will take 7-10 days to finish the assemble by 3-5 workers.
And we will offer the construction drawing to guide the installation, will also support online. It is very easy and fast.
1. Foundation
2. Lay down the chassis;
3. Erect the wall panels;
4. Connect the electrical and plumbing;
5. Install the doors and windows;
6. Install the flashing, skirting;
7. Finished
Related Projects
| Project Name | SMMCI Project | ||
| Finished Time | Year 2013 | ||
| Project Place | South Manila, Philippines | ||
| Building Area | 2600 S.qm warehouse plus 1700sqm office/camp facility | ||
| Project Description | For "San Mining CONST. CORP.", use as onsite warehouse, office, camp and other facilities. Full package provided by us. | ||
| Project Name | Camp in Lao | ||
| Finished Time | Year 2019 | ||
| Project Place | Lao | ||
| Building Area | 56 units | ||
| Project Description | Accommodation and office blocks made of flatpack container houses, most are two floors. Meets with AU standards. |
| Project Name | MTI Accommodation Camp | ||
| Finished Time | Year 2022 | ||
| Project Place | Indonesia | ||
| Building Area | 288 rooms with ensuite in three floor, 8 buildings | ||
| Project Description | 8 Staff accommodation buildings for PT. Merdeka Copper Gold .Each block in three floors, 12 rooms with ensuites in every floor, 36 rooms combine into one block. CBC designs, provides all materials, accessories, facilities within two months. | ||
| Project Name | AMMAN Accommodation Camp | ||
| Finished Time | Year 2022 | ||
| Project Place | Indonesia | ||
| Building Area | 480 rooms with ensuite | ||
| Project Description | 6 Staff accommodation buildings for AMMAN .Each block in two floors, 40 rooms with ensuites in every floor, 80 rooms combine into one block. CBC designs, provides all materials, accessories, facilities. All pods customized for our client. |
| Project Name | PNG Concrete warehouse | ||
| Finished Time | Year 2014-now | ||
| Project Place | POM, PNG | ||
| Building Area | 2700 Sq.m | ||
| Project Description | Six Miles development, total 12 units each around 2700S.qm, till now total building area 30,000S.qm, and the 13th is coming in Year 2022 | ||
| Project Name | SCPA workshop | ||
| Finished Time | Year 2016 | ||
| Project Place | Manila Philippines | ||
| Building Area | 2600 Sq.m | ||
| Project Description | Design and fabrication, built in heavy corrosion area | ||
| Project Name | Virgin Islands Logistic Center | ||
| Finished Time | Year 2015 | ||
| Project Place | Virgin Islands | ||
| Building Area | 11700 S.qm | ||
| Project Description | Partial two floors steel structure building, heavy wind loading. |
FAQ
Q: What can you do for me?
A. CBC provides one-stop building solutions for projects such as:
Steel structure warehouse;
Steel structure apartment;
Steel structure workshop;
Steel structure shopping mall;
Steel structure car-park;
Mining camp;
Construction site camp;
Temporary house;
Low-cost house;
Vocational house;
Luxury residential house;
Resort villa;
Refugee house;
Isolation room;
Tiny House Expandable Container Homes
Q: What’s the benefits to cooperate with CBC?
A: To cooperate with CBC so that you can benefit from the professional services provided by the engineer team and commercial team:
Quick response;
Cost saving;
Free design;
Full range of options to meet with your special requirements;
One-stop solution to save your time and min. the communication troubles;
BIM system which can be relied for a lifetime period of the project;
Q: How can you guarantee the Easy To Install Expandable Container Homes project can be approved by local authority?
A: 1) All customized designs based on your detailed requirements;
2) All materials can meet with local standards;
3) Structure calculations provided free to help to get approval;
4) More than 10 Years’ oversea project experiences prepared us well for any questions.
Q: What's the process to start the cooperation?
To let us know your requirements or to send the designs;
Confirm our customized design for you based on above requirements;
Confirm the quotation based on our customized designs;
Arrange the down payment;
Confirm the shop drawings and make clear how we can fulfill your requirement;
Pass the inspection after around 30 days of production;
Arrange the balance payment;
Receive and study the installation instructions;
Receive the materials;
Finish the installation following our instructions and on-line engineering support;
Use our BIM system for a lifetime after sales maintenance service;
Appricate your recommendation or re-order;
