High Set Light Gauge Steel Prefab House

High Set Light Gauge Steel Prefab House materials options
Type	With or without steel chassis	Type one: without steel chassis, build on concrete strip foundation Type two: with steel chassis, the building will be put on concrete blocks
	Story	One story or two story or three story are available
Frame system	Steel column	Q235 Steel, 100*100*2.5 square tube, alkyd painting, twice primer paint & twice finish paint
	Steel roof truss	C100*40*15*2.0, welding and galvanized
	Roof and wall purlin	C100*40*15*2.0, galvanized
	Cross bracing	Q235 Steel, L40*3 angle steel, alkyd painting, twice primer paint & twice finish paint
	Chemical bolt	M16, chemical bolt
	Ordinary bolt	4.8S, galvanized
Steel chassis or 1st floor system	Main beam	HN250*125*5.5*8, Q235 Steel, alkyd painting, twice primer paint & twice finish paint
	Secondary beam	C100*40*15*2.0 galvanized
	Floor structure board	18/20mm plywood and fiber cement board
	Flooring	PVC floor leather and ceramic tiles are available
Wall and Roof system	Wall panel	Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available
	Roof panel	Sandwich panel: Rock wool, Glass wool, EPS, PU are available Thickness: 50mm, 75mm, 100mm, 150mm, 200mm are available
Ceiling system	Dry room	600*600*6mm gypsum board, with framework
	Wet room	600*600*5mm calcium silicate board, with framework
Door and window system	Door	Fire resistant steel single/double door, emergency door with panic bar, aluminum glass door, MDF door are available
	Window	PVC, Aluminum sliding window with single/double glazed glass, with mosquito screen, with louver are available
Electric and Plumbing system	Electric units	Electric wire, conduit, socket, switch, light, distribution box
	Sanitary units	Shower, closet, basin, water pipe

Advantages

Lifetime for structure: 50 years.

Earthquake resistance: Max. more than 8 grades.

Wind resistance: max 64m/s.

Fire resistance: all the materials used can be fire resistance.

Snow resistance: max 2.9KN/m²as required

Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.

High acoustic insulation: 60db of exterior wall 40db of interior wall

Insect prevention: Free from the damages by insects, such as white ants

Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

Installation: the average is one worker one day install one SQM.

Installation guide: dispatch engineer to guide on site.

Applications

Light steel living house;

Light steel apartment building;

Light steel affordable house;

Light steel luxury villa;

Light steel structure restaurant;

Light steel frame office building

Light steel frame hotel building;

Light steel frame school building;

Light steel structure hospital building;

Light steel structure vocational resort house;

Light steel prefab granny flat;

Light steel frame modular pod;

Other prefab light weight house;

Related Projects

Indonesia:

PT Merdeka accommodation camp-288 rooms with ensuite;

AMMAN accommodation camp-480 rooms with ensuite;

Chile:

FRIOSAN cold storage—1600sqm American Style Steel Structure Shopping Mall with two floors office area, in-depended dining and access room

Reduccion casa

Casa Laguna Verde-156sqm two floors 4 Bedroom Prefabricated Homes

Austrian:

Polyfit workshop and office building—in total around 2000sqm, combine steel structure, light gauge steel frame and second-hand shipping containers;

Philippines:

SCPA workshop-3200sqm with Two Floor Flat Pack Container Homes inside

SG Eco workshop-3600sqm warehouse with two floors office in 250sqm,

Iriga Factory,

BBL Camp—24 rooms accommodation camp with public services such as dining hall, gym room;

Maria De Sio Resort-320sqm

SMMCI Camp—1300sqm office building built by flatpack container house and 2600sqm warehouse

PNG:

PNG concrete Development—13 steel structure warehouse in around 1500sqm each;

Virgin Island: 10000sqm Distribution center

New Caledonia:

Alain's warehouse-five floors warehouse building with cargo lift, in total 1750sqm

Le Tigre Warehouse—three floors warehouse with ramp, total 3700sqm

Mozambique:

Nakala Resort—32 units of light gauge steel house as a beach side resort;

Tonga: Tonga Power Plant—3600sqm

Reunion Island: ARC-18/19 House Project—240sqm High Set Light Gauge Steel Prefab House

FAQ

Do you provide on-site installation service?

1) Only large projects provide installation services

2) General projects, we can provide Installation guide service based on customers’ request.

3) Installation supervision charge standard: 150USD/day, customer should responsible for the travel fee, accommodation, translation fee, and ensure staff’s health and safety.

What’s your delivery time?

Salesman will confirm the time accordingly, large order should communicate with order management department in advance. Normally, delivery time is 45days after receive deposit. Large order delivery time should be arranged separately.

How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

How to deal with quality problems?

Warranty is 3 years. Within the warranty period, HANGZHOU XIXI BUILDING CO., LTD will responsible for all quality problems caused by production.

If there is a clear service life of your products? If have, how long?

Under conventional climate and environment, steel structure whole building 10 years, main structure 15 years, protecting system 10 years.

What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure.

Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

High corrosion region: use corrosion resistant material, or paint anticorrosive coating.

How do you guarantee the quality of the High Set Light Gauge Steel Prefab House?

A: Quality is the future. Quality is the top priority.

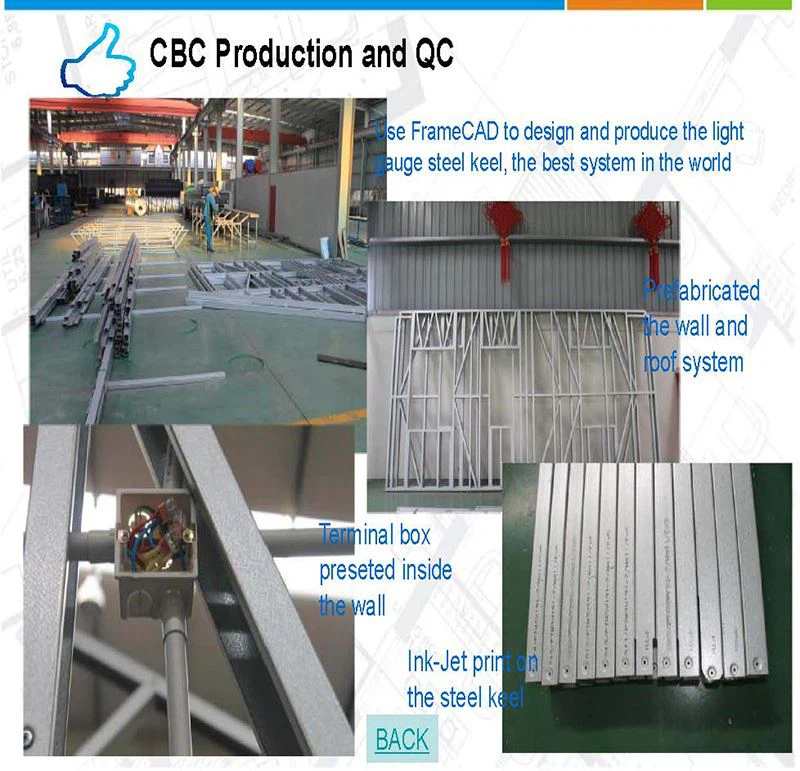

We have a five people QC team inspecting production daily, they will follow the shop drawings strictly and check every part/project at the beginning, in the middle and for finished products.

We can also assemble some units in our factory for some special customized projects to make sure everything is good enough.
